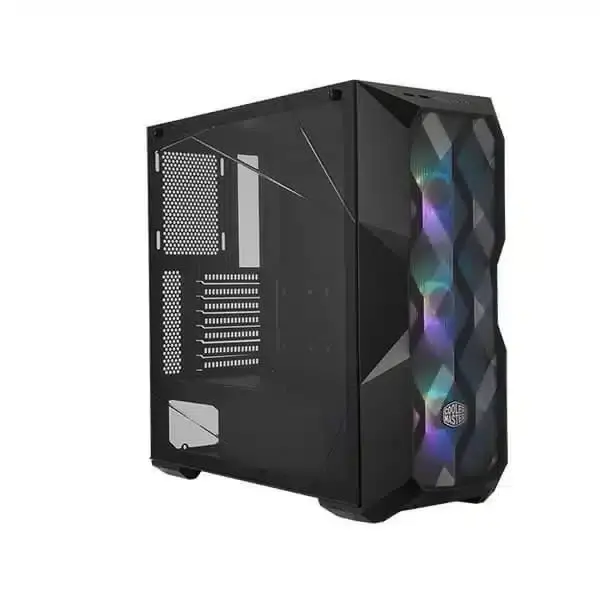

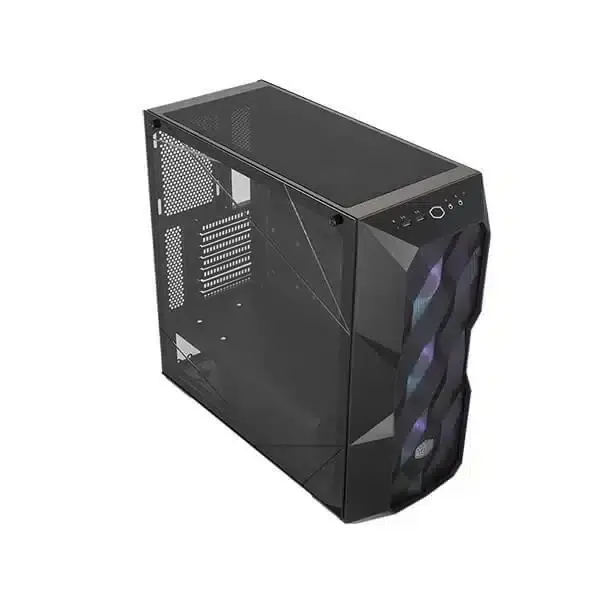

Cooler Master TD500 Mesh Mid-Tower Case – Black Edition

Features

Airflow Meets Artistry
The MasterBox TD500 Mesh series redefines cooling by blending performance with visual impact. Its sculpted front panel works in harmony with three pre-installed ARGB fans to deliver strong airflow while showcasing vibrant lighting through tempered glass. Every detail is designed to enhance both thermal efficiency and overall aesthetics.

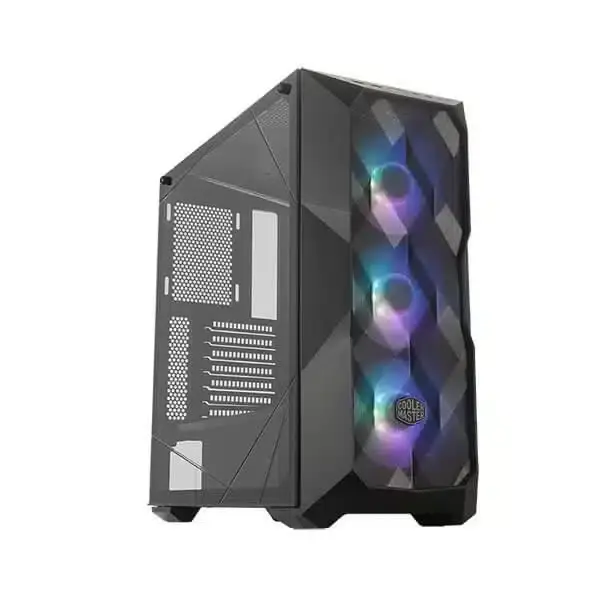

Polygonal Mesh Design
The geometric front panel is built using Cooler Master’s Fine Mesh Technology. This multi-layered structure improves airflow intake while acting as an effective barrier against dust, maintaining a balance between performance and protection.

Triple ARGB Lighting System
Three addressable RGB fans come pre-installed at the front, producing dynamic lighting effects along with consistent airflow. The system supports synchronization with major motherboard brands, allowing seamless customization.

Dual 360mm Radiator Support
Built for high-performance setups, the case supports up to two 360mm radiators on the front and top panels. This makes it ideal for users looking to implement advanced liquid cooling solutions.

Versatile Cooling Options
The chassis supports up to seven fans and multiple radiator configurations, offering flexibility for both air and liquid cooling setups without compromising efficiency.

Built for Future Upgrades
The spacious interior supports large components, including graphics cards up to 410mm, CPU coolers up to 165mm, and power supplies up to 180mm. This ensures long-term compatibility with evolving hardware.

Specifications

Product Name: MasterBox TD500 Mesh With Controller
Exterior Color: Black

Materials
Exterior: Steel, Mesh, Plastic

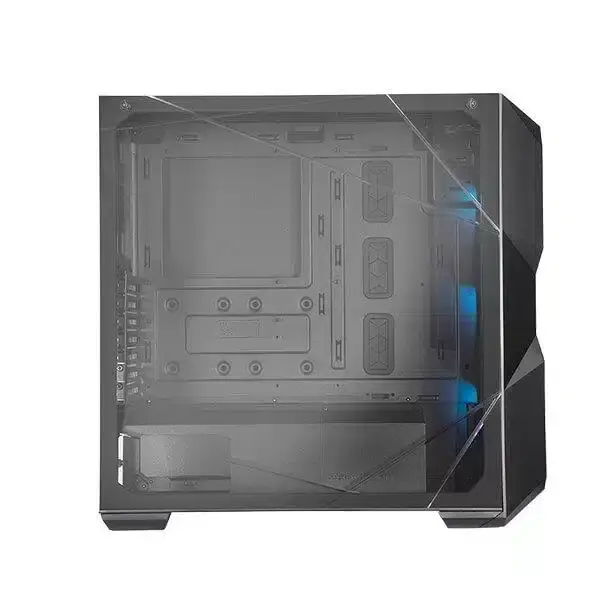

Left Side Panel: Tempered Glass

Dimensions (L x W x H)
Including Protrusions: 493 × 217 × 469 mm
Excluding Protrusions: 429.5 × 205 × 447 mm

Volume (Excluding Protrusions): 40.14 Liters

Motherboard Support
Mini-ITX, Micro-ATX, ATX, SSI CEB, E-ATX (up to 12” × 10.7”)

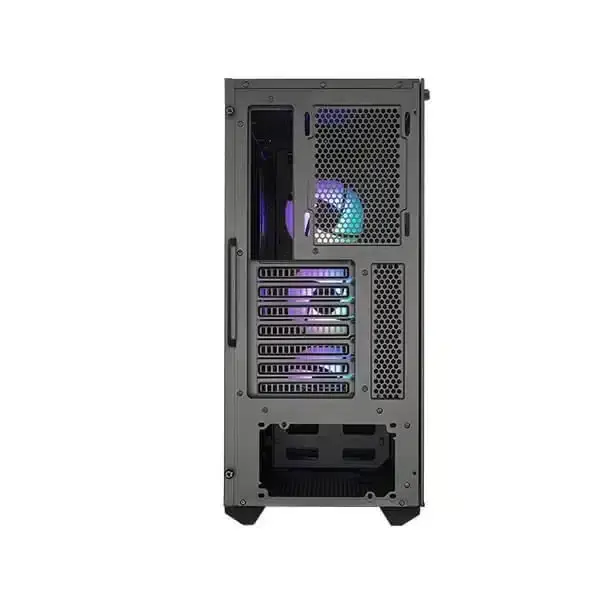

Expansion Slots: 7

Drive Bays
3.5” / 2.5” Combo: 2
2.5” SSD: 4 (2 + 2 Combo)

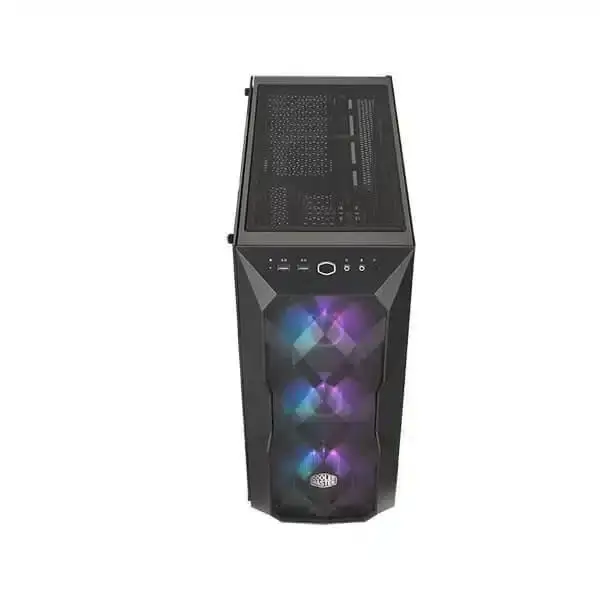

I/O Panel
2 × USB 3.2 Gen 1 (USB 3.0)
1 × 3.5mm Audio Jack
1 × 3.5mm Mic Jack
1 × ARGB Controller
1 × ARGB 2-to-3 Splitter

Cooling Configuration

Pre-installed Fans
Front: 3 × 120mm ARGB Fans

Fan Support
Top: 3 × 120mm or 2 × 140mm
Front: 3 × 120mm or 2 × 140mm
Rear: 1 × 120mm

Radiator Support
Top: 120 / 240 / 360 mm (44mm max motherboard component height)
Front: 120 / 140 / 240 / 280 / 360 mm
Rear: 120 mm

Clearances

CPU Cooler: 165mm
Power Supply: 180mm (295mm with HDD cage removed)
Graphics Card: 410mm

Additional Details

Cable Routing Space Behind Motherboard Tray: 19mm
Dust Filters: Front, Top, Bottom
Power Supply Support: Bottom Mount, ATX
Warranty: 2 Years
