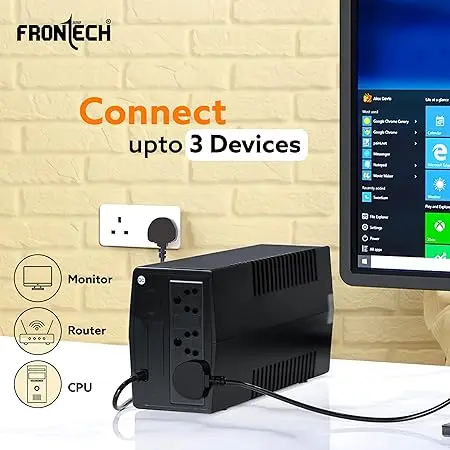

The Frontech Electra Plus FT-2564 is a 600VA line-interactive UPS specifically engineered to handle the frequent power fluctuations and outages common in Indian environments. It is a compact, entry-level power solution designed to protect desktop PCs, Wi-Fi routers, and surveillance systems from surges and sudden blackouts.

About this item

• Introducing the UPS Electra Plus 600VA/360W Maintenance Free Battery, the ultimate solution for uninterrupted power supply!
• Micro Controller design that has sleep mode charging with a good generator compatibility. It consists of smart charge with continuous charging profile when power from the mains is present.
• The Smart Charge+ feature adjusts the battery charging profile intelligently for longer battery life and faster charging. Auto holiday mode preserves battery charge while the computer is not in use.
• Visual Alarms: a) Mains ON b) UPS ON c) Low battery pre- alarm d) Low battery and overload trip e) Sleep mode charging. Audible Alarms: a) Mains Fail, b) Low battery pre-alarm c) Low battery and overload.

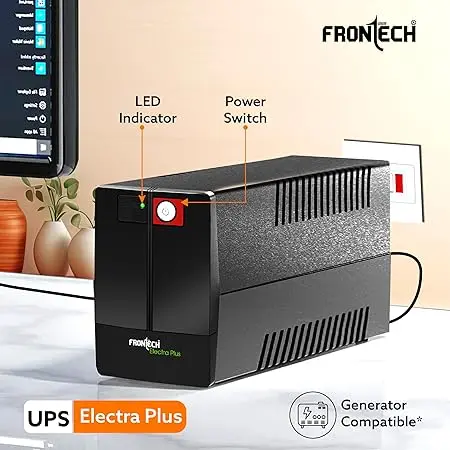

• Wide input voltage window with electronic Overload Protection ensures safe and stable operation. With its LED Indicator, you can easily monitor the battery status and know when it's time to recharge.

Core Performance & Capacity

• Capacity: 600VA / 360 Watts.

• Topology:Line-Interactive with Automatic Voltage Regulation (AVR) to stabilize input voltage without draining the battery.

• Input Voltage Range: Wide window of 140V – 300V AC, making it highly effective in areas with unstable power.

• Output Waveform: Stepped approximation to a sinewave (Simulated Sine Wave), suitable for standard switch-mode power supplies (SMPS) found in most PCs.

Intelligent Features

• Smart Charge+: Uses an advanced charging profile that intelligently adjusts to the battery's needs, resulting in faster charging and a longer overall battery lifespan.

• Sleep Mode Charging: The unit continues to charge the internal battery even when the UPS is switched off, provided it is connected to a live mains socket.

• Auto Holiday Mode: A specialized power-saving feature that detects when the connected computer is not in use for extended periods, preserving the battery charge for when it’s actually needed.

• Generator Compatibility: Tuned to handle the wider frequency variations and noise typical of home or office power generators.

Battery & Protection

• Battery Details: Single 12V / 7Ah sealed, maintenance-free lead-acid battery.

• Backup Time: Typically provides 15–20 minutes for a standard desktop PC, or up to 90+ minutes for a low-power Wi-Fi router.

• Recharge Time: Recovers to 90% capacity in approximately 6–8 hours.

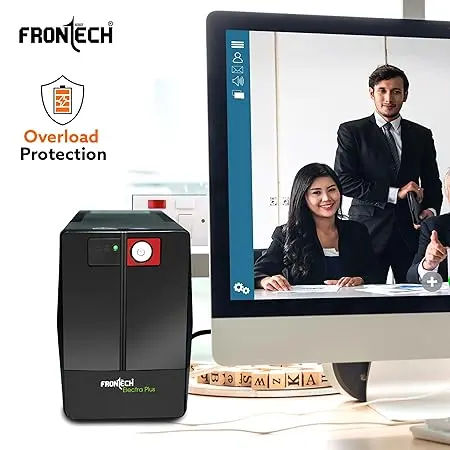

• Safety Protections: Full protection against Overload, Short Circuit, Over-discharge, and Over-charge.

Visual & Audible Indicators

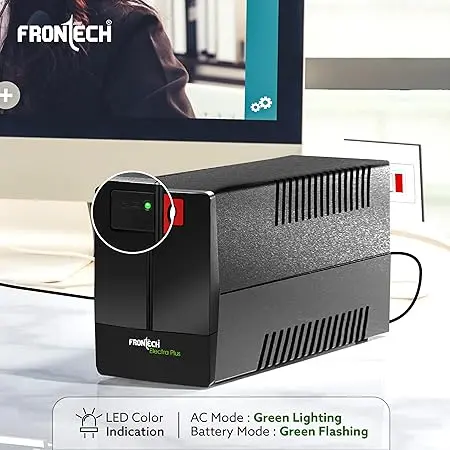

• Visual (LEDs):

  • Green: Normal operation (Mains ON).

  • Orange: Battery mode (Powering from internal battery).

  • Red: Fault mode or Overload.

• Audible (Beeps):

  • Mains Failure: Beeps every 10 seconds.

  • Low Battery: Rapid beeping every 1 second.

  • Overload: Continuous beeping or every 0.5 seconds.

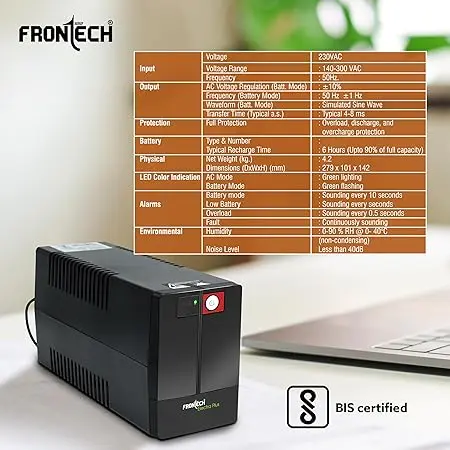

Technical Summary
