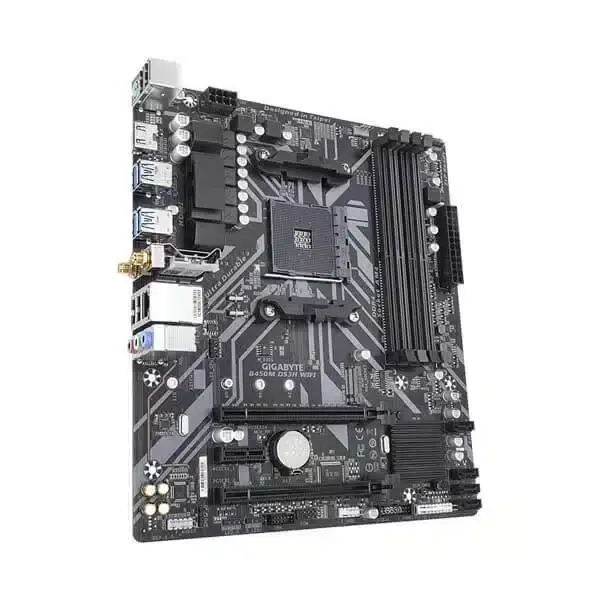

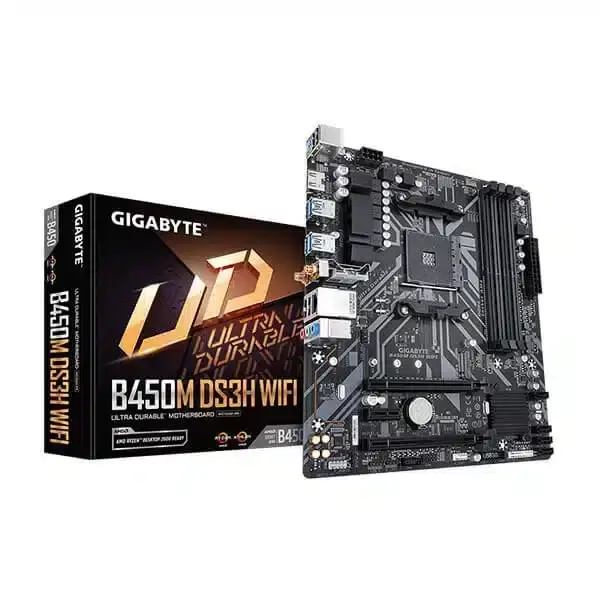

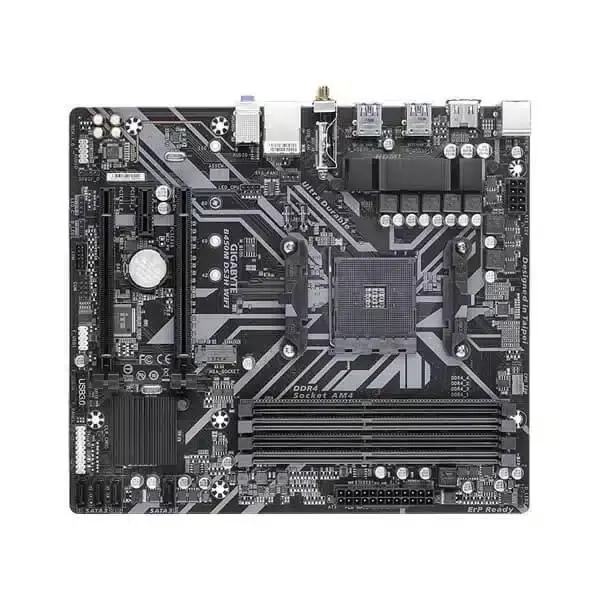

Name: Gigabyte B450M DS3H WIFI Motherboard
Brand: Gigabyte
SKU: MC-2443-RVNT
Price: 8790 INR
Availability: InStock

Description
Reviews (0)

Category	Details
Model	B450M-DS3H-WIFI
CPU	AM4 Socket supports: AMD Ryzen™ 2nd Gen processors AMD Ryzen™ with Radeon™ Vega Graphics AMD Athlon™ with Radeon™ Vega Graphics AMD Ryzen™ 1st Gen processors
Chipset	AMD B450
Memory	4 × DDR4 DIMM sockets, up to 64GB Dual channel architecture Supports DDR4 3600(O.C.) / 3466(O.C.) / 2933 / 2667 / 2400 / 2133 MHz Supports ECC (non-ECC mode) and non-ECC DIMMs XMP support
Onboard Graphics	Integrated Graphics Processor: 1 × HDMI up to 4096 × 2160 @ 60Hz (HDMI 2.0, HDCP 2.2) Maximum shared memory: 2 GB
Audio	Realtek® ALC887 codec High Definition Audio 2 / 4 / 5.1 / 7.1-channel S/PDIF Out support
LAN	Realtek® GbE LAN chip (10 / 100 / 1000 Mbit)
Expansion Slots	1 × PCIe x16 (PCIEX16) 3.0 1 × PCIe x16 (PCIEX1_2) running at x1 1 × PCIe x1 (PCIEX1_1) 2.0
Storage Interface	1 × M.2 Socket 3 (2242 / 2260 / 2280 / 22110, SATA & PCIe 3.0 x4/x2) 4 × SATA 6Gb/s connectors RAID 0 / 1 / 10 support
Multi-Graphics Technology	AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™
USB	CPU: 4 × USB 3.1 Gen1 (back panel) Chipset: 2 × USB 3.1 Gen1 (internal) 6 × USB 2.0 / 1.1 (4 back panel, 2 internal)
Internal I/O Connectors	24-pin ATX power connector 8-pin ATX 12V power connector CPU fan header System fan header 1 × M.2 connector 4 × SATA 6Gb/s connectors Front panel header Front panel audio header S/PDIF header CPU cooler LED / RGB header RGB headers and addressable LED headers USB headers TPM header Serial port header Clear CMOS jumper

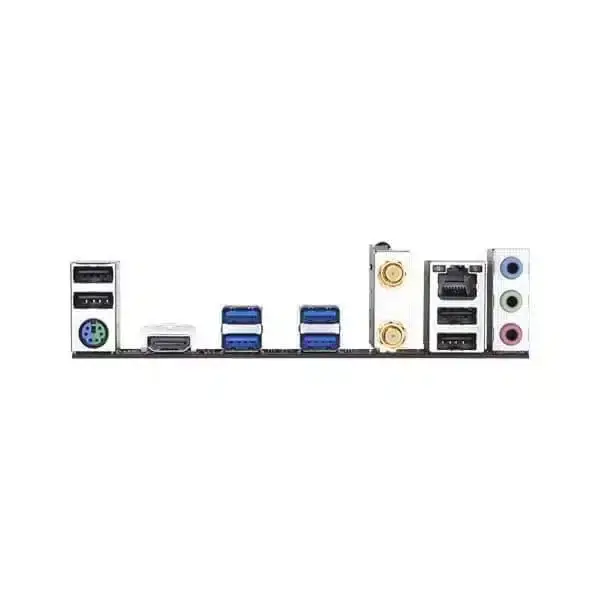

Back Panel Connectors	1 × PS/2 port 1 × HDMI port 4 × USB 3.1 Gen1 4 × USB 2.0 / 1.1 2 × SMA antenna connectors 1 × RJ-45 LAN port 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control
BIOS	1 × 128 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	APP Center, @BIOS, 3D OSD, AutoGreen, Cloud Station, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, Smart Keyboard, Smart TimeLock, Smart HUD, Smart Survey, System Information Viewer, USB Blocker, Q-Flash, Xpress Install
Bundle Software	Norton® Internet Security (OEM version) cFosSpeed
Operating System	Windows 10 64-bit Windows 7 64-bit (requires AMD Pinnacle / Summit Ridge CPU)
Form Factor	Micro ATX; 24.4 cm × 21.5 cm
Warranty	3 Years
Note	Features, price, and specifications are subject to change without notice.
