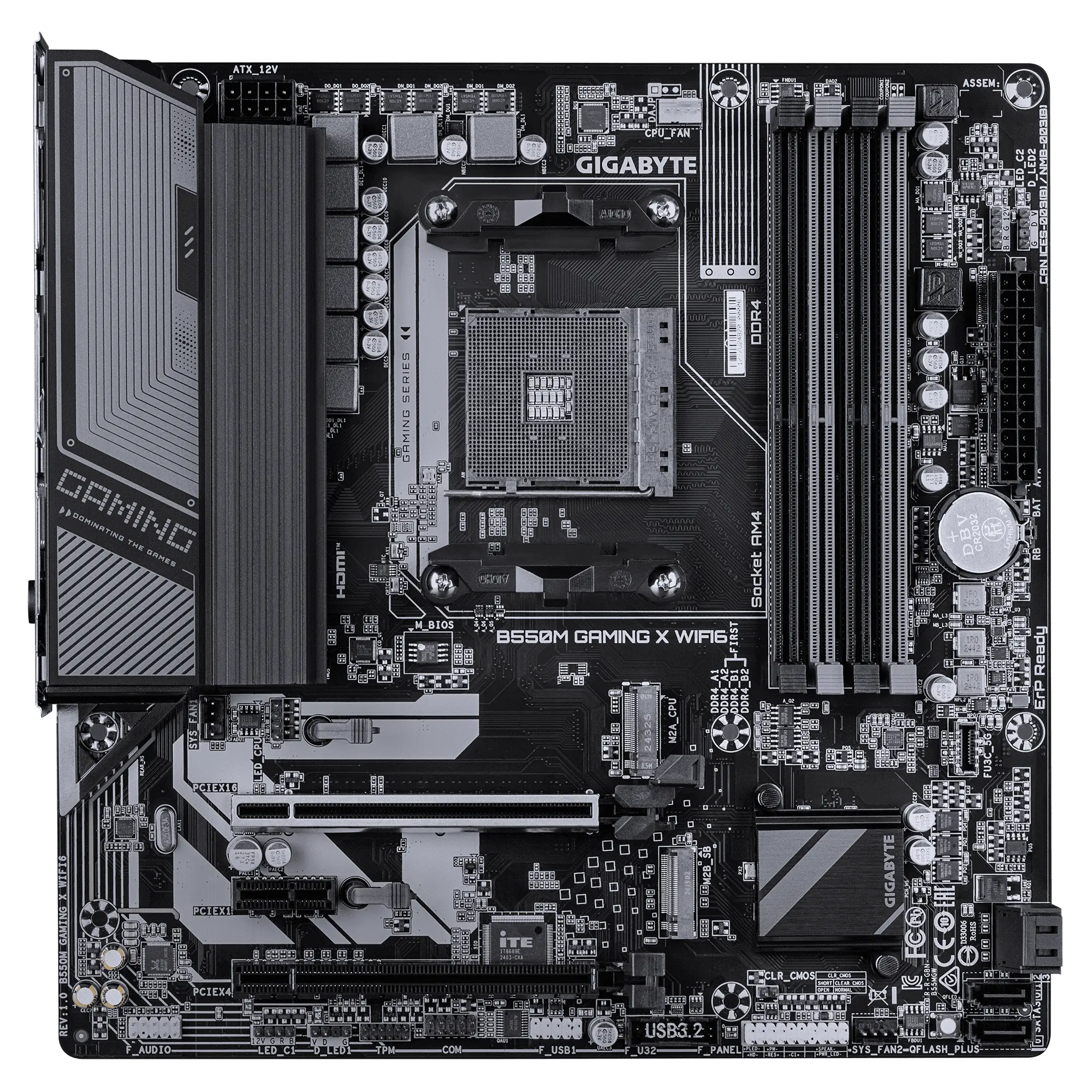

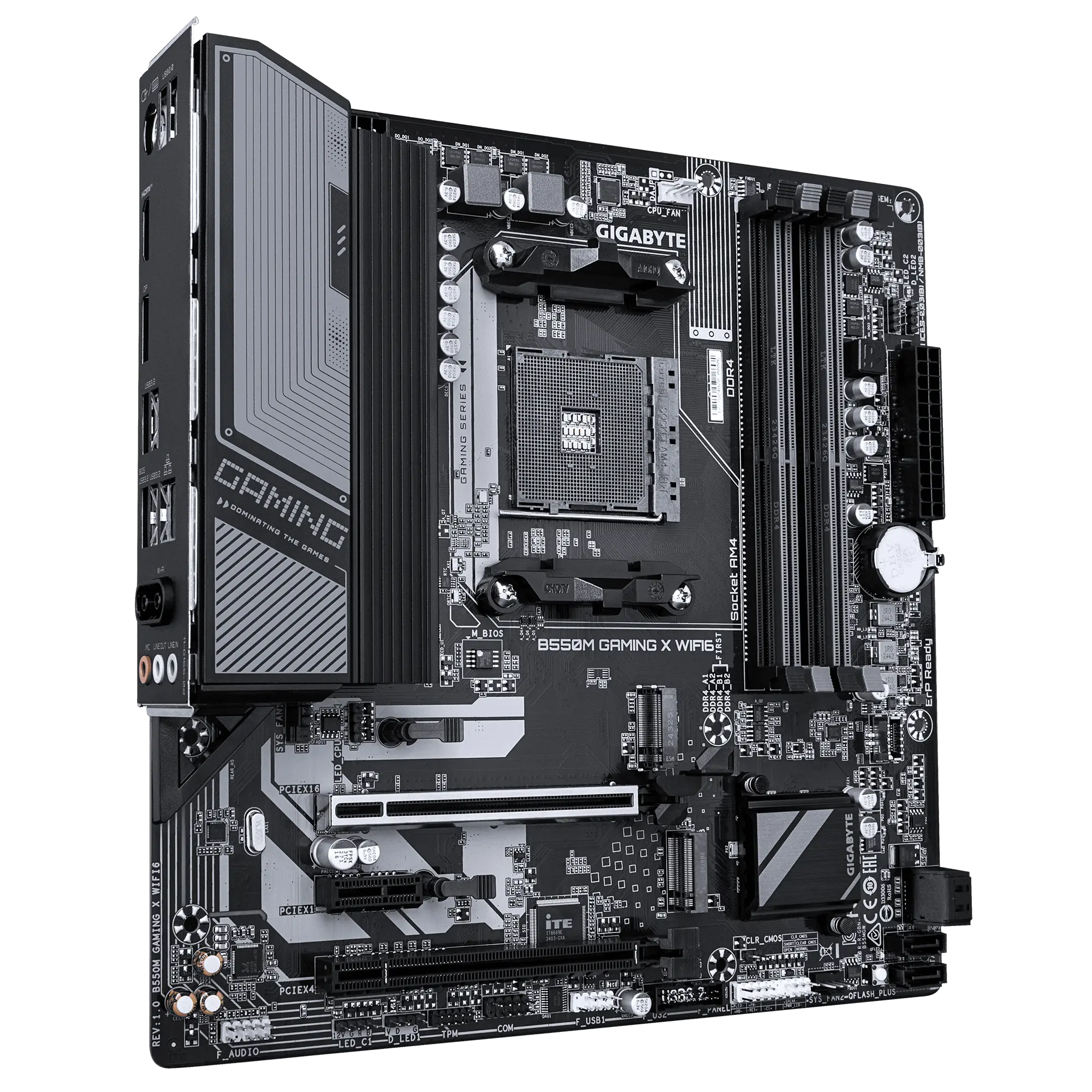

Name: Gigabyte B550M Gaming X WIFI6
Brand: Gigabyte
SKU: MC-2443-1OOE
Price: 10090 INR
Availability: OutOfStock

Description
Reviews (0)

Specification	Details
CPU	AMD Socket AM4, support for: • AMD Ryzen™ 5000 G-Series Processors • AMD Ryzen™ 5000 Series Processors • AMD Ryzen™ 4000 G-Series Processors • AMD Ryzen™ 3000 G-Series Processors • AMD Ryzen™ 3000 Series Processors (Refer to GIGABYTE’s website for the latest CPU support list.)
Chipset	AMD B550
Memory	4 × DDR4 DIMM sockets supporting up to 128GB system memory (32GB single DIMM capacity). Supports DDR4 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modules. Dual-channel memory architecture. Supports ECC Unbuffered DIMM 1Rx8 / 2Rx8 memory modules. Supports non-ECC Unbuffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules. Supports Extreme Memory Profile (XMP) memory modules. (CPU and memory configuration may affect supported memory types and speed.)
Onboard Graphics	Integrated Graphics Processor with AMD Radeon™ Graphics support: • 1 × DisplayPort (max resolution 5120 × 2880 @ 60Hz) Supports DisplayPort 1.4, HDCP 2.3, HDR • 1 × HDMI port (max resolution 4096 × 2160 @ 60Hz) Supports HDMI 2.1, HDCP 2.3, HDR Supports native HDMI 2.1 TMDS compatible ports. Maximum shared memory: 16GB. (Graphics specifications may vary depending on CPU.)
Audio	Realtek® ALC1220 CODEC High Definition Audio 2 / 4 / 5.1 / 7.1-channel Back panel line-out jack supports DSD audio.
LAN	Realtek® GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps)
Wireless	Realtek® Wi-Fi 6 RTL8851BE Supports Wi-Fi a / b / g / n / ac / ax standards (2.4GHz / 5GHz bands) Supports 11ax 80MHz wireless standard Bluetooth® 5.3 (Actual data rate may vary depending on environment and equipment.)
Expansion Slots	CPU: • 1 × PCI Express x16 slot (PCIEX16) Ryzen™ 5000 / 3000 Series → PCIe 4.0 x16 Ryzen™ 5000 G / 4000 G / 3000 G → PCIe 3.0 x16 Chipset: • 1 × PCI Express x16 slot (PCIEX4) – PCIe 3.0 x4 • 1 × PCI Express x1 slot (PCIEX1) – PCIe 3.0 x1 * PCIEX16 slot supports graphics card or NVMe SSD.
Storage	1 × M.2 connector (M2A_CPU): Socket 3, M key, type 2280 SSDs • Ryzen™ 5000 / 3000 → SATA & PCIe 4.0 x4/x2 SSDs • Ryzen™ 5000 G / 4000 G / 3000 G → SATA & PCIe 3.0 x4/x2 SSDs 1 × M.2 connector (M2B_SB): Socket 3, M key, type 2280 SATA & PCIe 3.0 x2 SSDs 4 × SATA 6Gb/s connectors RAID 0 / 1 / 10 support for NVMe and SATA storage devices
USB	CPU: • 4 × USB 3.2 Gen1 ports (rear panel) Chipset: • 1 × USB Type-C® (USB 3.2 Gen1) via internal header • 2 × USB 3.2 Gen1 via internal header • 4 × USB 2.0/1.1 (2 rear + 2 internal)
Internal Connectors	24-pin ATX power connector 8-pin ATX 12V power connector CPU fan header 2 × system fan headers 2 × addressable LED strip headers 2 × RGB LED strip headers 1 × CPU cooler LED / RGB header 2 × M.2 connectors 4 × SATA ports Front panel header Front panel audio header USB Type-C® header (USB 3.2 Gen1) USB 3.2 Gen1 header USB 2.0/1.1 header TPM header (2×6 pin) Serial port header Clear CMOS jumper Q-Flash Plus button

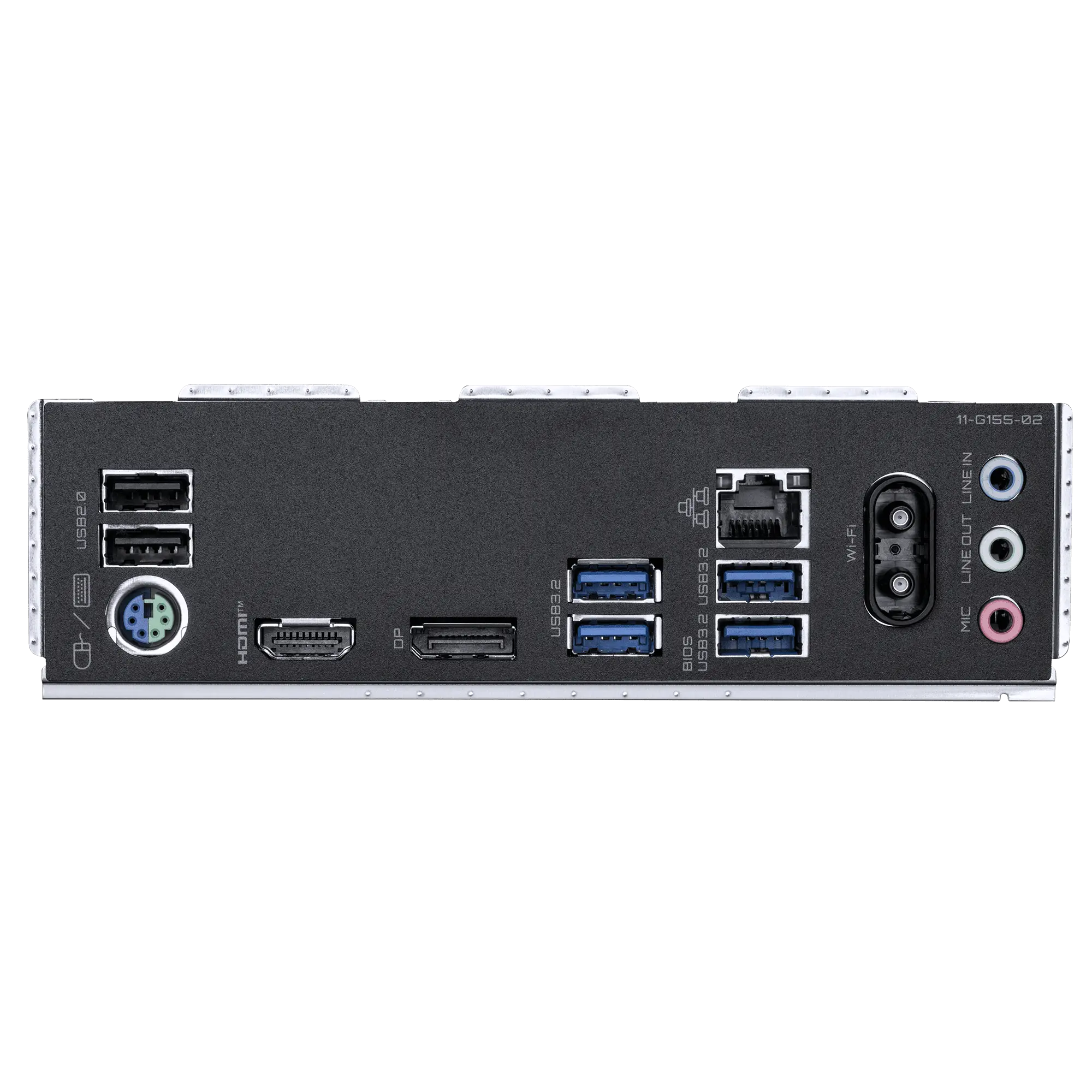

Back Panel	2 × USB 2.0/1.1 ports 1 × PS/2 keyboard/mouse port 1 × HDMI port 1 × DisplayPort 4 × USB 3.2 Gen1 ports 1 × RJ-45 LAN port 2 × antenna connectors 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control
BIOS	1 × 128 Mbit flash Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer Support for Q-Flash Plus Support for Q-Flash
Bundle Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Windows 11 64-bit Windows 10 64-bit
Form Factor	Micro ATX – 24.4 cm × 24.4 cm
Warranty	3 Years
Note	Price, features, and specifications are subject to change without notice.
