Gigabyte B650 GAMING X AX V2

Name: Gigabyte B650 GAMING X AX V2
Brand: Gigabyte
SKU: MC-2443-BSJF
Price: 16990 INR
Availability: OutOfStock

Brand: Gigabyte

₹16,990.00 ₹32,000.00

(Including GST 18%)

Chat on WhatsApp

SKU:MC-2443-BSJF

Categories:Motherboard

Description
Reviews (0)

Specification	Details
Model Name	B650 GAMING X AX V2
CPU	AMD Socket AM5, supports Ryzen™ 7000 / 8000 / 9000 Series
Chipset	AMD B650
Memory	4 × DDR5 DIMM, up to 256 GB (64 GB/DIMM) Supports DDR5 8000–4400 MT/s, Dual channel, non-ECC AMD EXPO™ & XMP support
Onboard Graphics	Integrated AMD Radeon™ Graphics: 1 × DisplayPort 1.4, 3840×2160@144Hz (HDR) 1 × HDMI 2.1, 4096×2160@60Hz (HDCP 2.3)
Audio	Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)
Wireless & Bluetooth	Wi-Fi 6E & Bluetooth 5.2/5.3 (depending on PCB) 2.4/5/6 GHz, 11ax 160MHz support
Expansion Slots	1 × PCIe x16 (CPU): Ryzen™ 7000/9000 – x16, 8000 Phoenix1 – x8, Phoenix2 – x4 2 × PCIe x16 (Chipset) – x1
Storage	3 × M.2 (PCIe 4.0/5.0 x4/x2, CPU/Chipset) 4 × SATA 6Gb/s RAID 0/1/10 for NVMe & SATA
USB	Back Panel: 1 × USB-C 3.2 Gen2, 1 × USB-A 3.2 Gen2 (red), 1 × USB 3.2 Gen1, 3 × USB 2.0 Internal: 1 × USB-C 3.2 Gen2x2, 4 × USB 3.2 Gen1, 4 × USB 2.0
Internal I/O	24-pin ATX, 8+4-pin 12V, CPU/System fan headers, RGB/LED headers, 3 × M.2, 4 × SATA, front panel/audio/USB headers, TPM, serial, reset/Clear CMOS jumpers

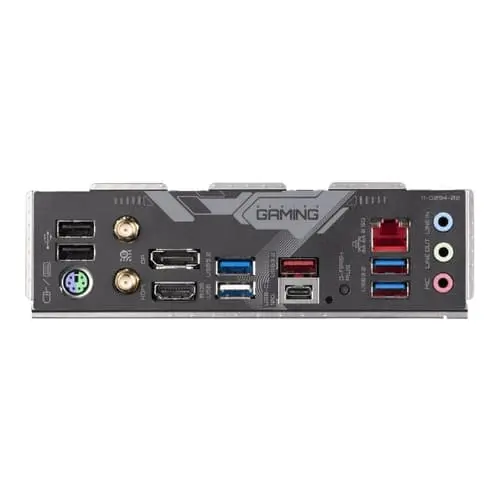

Back Panel	2 × SMA antenna, Q-Flash Plus, DisplayPort, HDMI, USB-C 3.2 Gen2, USB-A 3.2 Gen2 (red), 3 × USB 3.2 Gen1, 3 × USB 2.0, RJ-45, 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan speed, Water flow, Fan fail warning, Fan control
BIOS	256 Mbit flash, AMI UEFI, PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center, Q-Flash, Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management
OS Support	Windows 11 64-bit, Windows 10 64-bit
Form Factor	ATX, 30.5 × 24.4 cm
Warranty	3 Years
Note	*** Features, Price, Specifications subject to change without notice.
