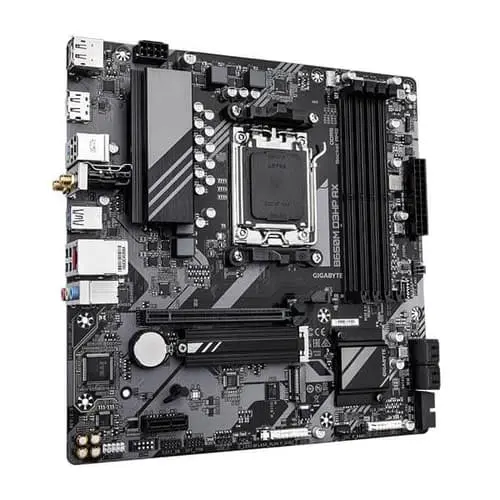

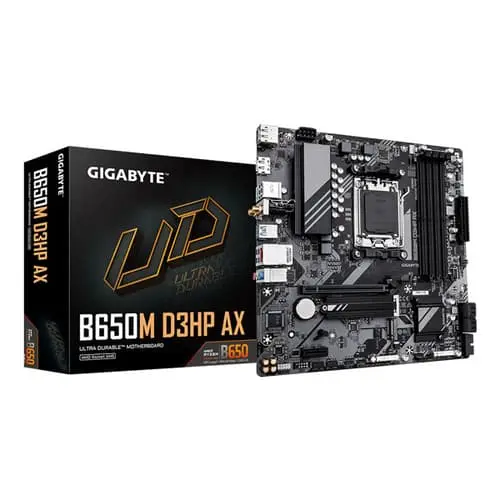

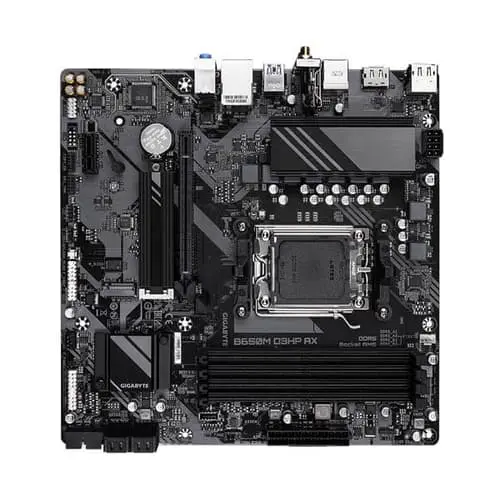

Name: Gigabyte B650M D3HP AX
Brand: Gigabyte
SKU: MC-2443-N3WR
Price: 11490 INR
Availability: OutOfStock

Description
Reviews (0)

Specification	Details
Model	B650M D3HP AX
CPU	AMD Socket AM5, supporting: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset	AMD B650
Memory	4 × DDR5 DIMM slots, up to 256GB (64GB per DIMM) Supported speeds: DDR5 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s Dual-channel architecture, non-ECC un-buffered 1Rx8 / 2Rx8 / 1Rx16 Supports AMD EXPO™ and XMP memory profiles
Onboard Graphics	Integrated AMD Radeon Graphics 2 × DisplayPorts (max 3840×2160 @144Hz, DP 1.4) 1 × HDMI port (max 4096×2160 @60Hz, HDMI 2.1, HDCP 2.3) Supports triple-display simultaneously *Graphics specs depend on CPU
Audio	Realtek Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel
LAN	Realtek 2.5GbE LAN (2.5/1/0.1 Gbps)
Wireless & Bluetooth	Realtek Wi-Fi 6E RTL8852CE Supports 802.11 a/b/g/n/ac/ax, 2.4/5/6 GHz, 11ax 160MHz Bluetooth 5.3
Expansion Slots	1 × PCIe x16 (CPU): • Ryzen 7000: PCIe 4.0 x16 • Ryzen 8000-Phoenix 1: PCIe 4.0 x8 • Ryzen 8000-Phoenix 2: PCIe 4.0 x4 1 × PCIe x1 (Chipset, PCIe 3.0 x1) *PCIEX16 supports GPU or NVMe SSD only
Storage	1 × M.2 (CPU, M2A_CPU, Socket 3, M key, 2280) 1 × M.2 (Chipset, M2C_SB, Socket 3, M key, 22110/2280) 4 × SATA 6Gb/s ports RAID 0 / 1 / 10 for NVMe and SATA devices
USB	CPU Back Panel: • 1 × USB Type-C (USB 3.2 Gen1) • 1 × USB 3.2 Gen1 • 1 × USB 2.0/1.1 Chipset: • 2 × USB 3.2 Gen1 (back) • 1 × USB Type-C (internal) • 2 × USB 3.2 Gen1 (internal) • 5 × USB 2.0/1.1 (1 back, 4 internal)
Internal I/O	24-pin ATX, 8-pin CPU power 1 × CPU fan, 2 × system fan headers 2 × addressable LED, 1 × RGB LED header 2 × M.2 slots, 4 × SATA 6Gb/s Front panel, audio, USB Type-C/USB 3.2 Gen1, USB 2.0 headers TPM header, Q-Flash Plus, reset jumper, Clear CMOS

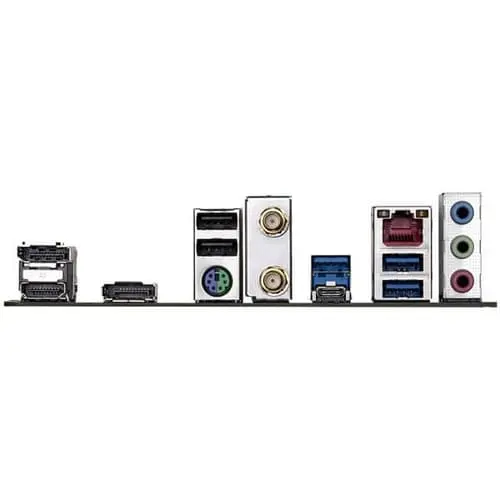

Back Panel Connectors	1 × PS/2 1 × USB Type-C (USB 3.2 Gen1) 3 × USB 3.2 Gen1 2 × USB 2.0/1.1 1 × HDMI, 2 × DisplayPort 1 × RJ-45, 3 × audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan Speed detection Fan fail warning and control
BIOS	256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus *GCC app availability may vary by motherboard model
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Operating System	Windows 11 64-bit Windows 10 64-bit
Form Factor	Micro ATX; 24.4 × 24.4 cm
Warranty	3 Years
Note	Features, price, specifications are subject to change without notice. Images are for representation purposes only
