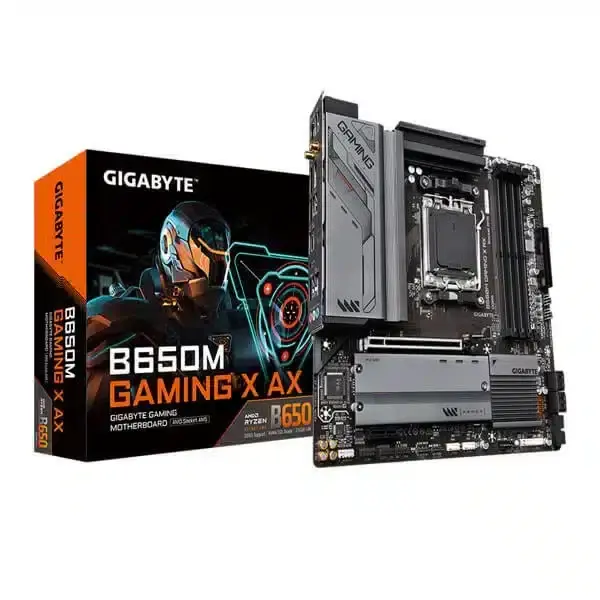

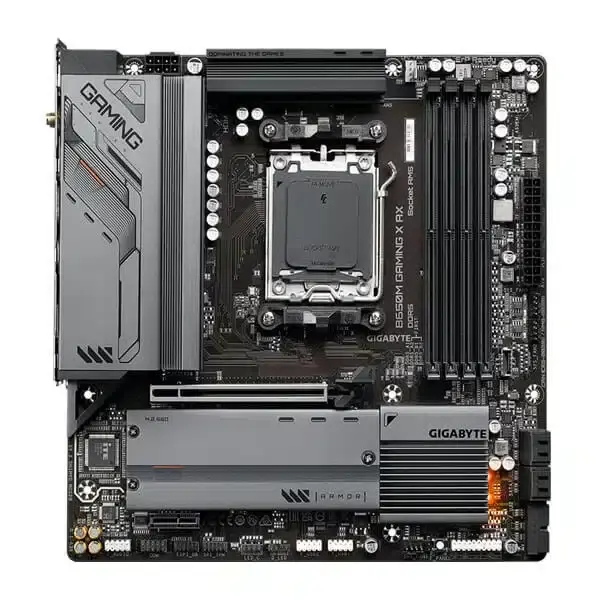

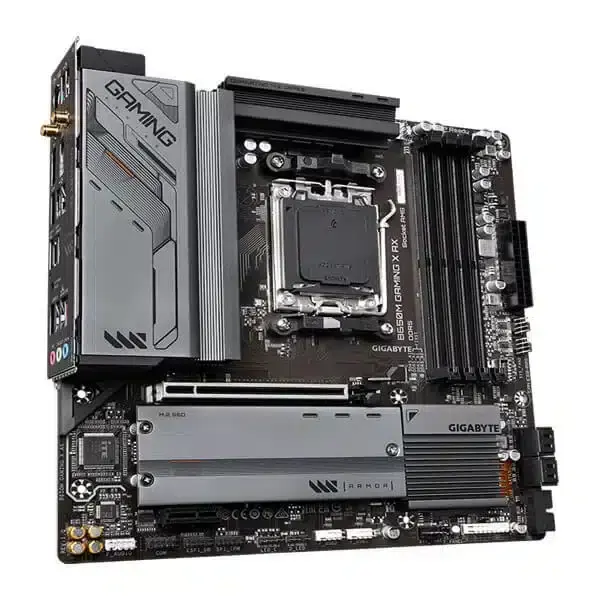

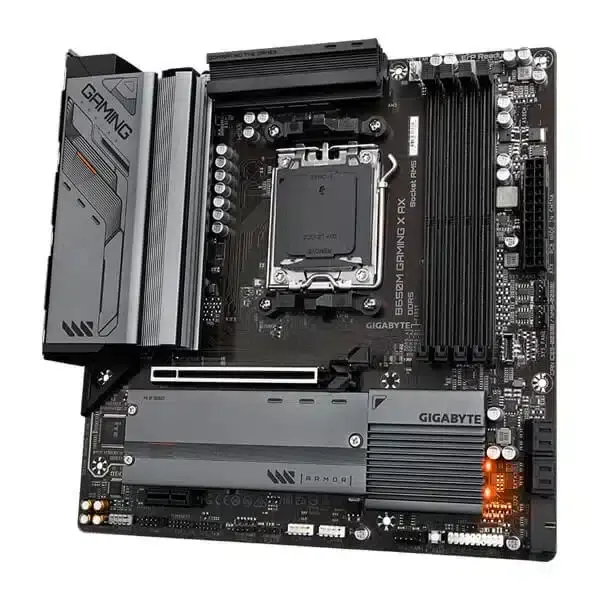

Name: Gigabyte B650M Gaming X AX
Brand: Gigabyte
SKU: MC-2443-6QIZ
Price: 14990 INR
Availability: OutOfStock

Description
Reviews (0)

Specification	Details
CPU	AMD Socket AM5, supporting AMD Ryzen™ 7000 Series Processors
Chipset	AMD B650
Memory	4 × DDR5 DIMM slots, up to 128GB (32GB per DIMM) Supported speeds: DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s Dual-channel, non-ECC un-buffered 1Rx8 / 2Rx8 / 1Rx16 Supports AMD EXPO™ and XMP memory profiles
Onboard Graphics	Integrated AMD Graphics Processor 2 × DisplayPorts (max 3840×2160 @144Hz, DP 1.4, HDR) 1 × HDMI (max 4096×2160 @60Hz, HDMI 2.1, HDCP 2.3) Supports native HDMI 2.1 TMDS ports
Audio	Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel
LAN	Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps)
Wireless Communication Module	PCB rev. 1.0: AMD Wi-Fi 6E RZ616 (MT7922A22M) PCB rev. 1.1: Intel® Wi-Fi 6E AX210 Supports 802.11 a/b/g/n/ac/ax, 2.4/5/6 GHz 11ax 160MHz, up to 2.4 Gbps Bluetooth 5.2 (rev.1.0) / 5.3 (rev.1.1)
Expansion Slots	CPU: • 1 × PCIe x16 (PCIEX16, PCIe 4.0 x16) Chipset: • 1 × PCIe x1 (PCIEX1, PCIe 3.0 x1)
Storage Interface	CPU: 2 × M.2 (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2) Chipset: 4 × SATA 6Gb/s connectors
USB	CPU Back Panel: • 1 × USB Type-C® (USB 3.2 Gen2) • 1 × USB 3.2 Gen2 Type-A (red) • 4 × USB 2.0/1.1 ports Chipset: • 1 × USB Type-C® (USB 3.2 Gen2, internal) • 4 × USB 3.2 Gen1 (2 back, 2 internal) • 4 × USB 2.0/1.1 (internal)
Internal I/O Connectors	1 × 24-pin ATX, 1 × 8-pin 12V 1 × CPU fan, 3 × system fans 1 × addressable LED, 1 × RGB LED 2 × M.2 sockets, 4 × SATA 6Gb/s 1 × front panel, 1 × front panel audio 1 × USB Type-C® (USB 3.2 Gen2), 1 × USB 3.2 Gen1 2 × USB 2.0/1.1, 1 × TPM header, 1 × serial port header 1 × reset button, 1 × reset jumper, 1 × Clear CMOS jumper

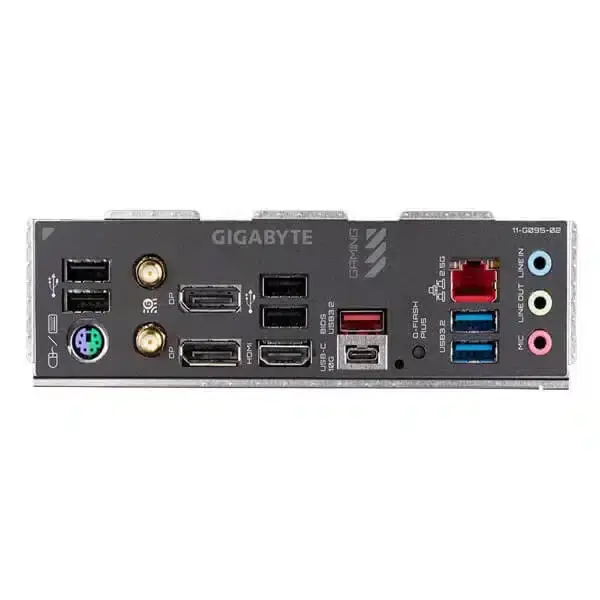

Back Panel Connectors	4 × USB 2.0/1.1, 2 × USB 3.2 Gen1, 1 × USB 3.2 Gen2 Type-A (red) 1 × USB Type-C® (USB 3.2 Gen2), 1 × PS/2, 2 × SMA antenna connectors 2 × DisplayPorts, 1 × HDMI, 1 × Q-Flash Plus 1 × RJ-45, 3 × audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection, Temperature detection Fan speed detection, Fan fail warning, Fan speed control
BIOS	256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus
Bundled Software	Norton® Internet Security (OEM version) LAN bandwidth management software
Operating System	Windows 11 64-bit Windows 10 64-bit
Form Factor	Micro ATX; 24.4 × 24.4 cm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
