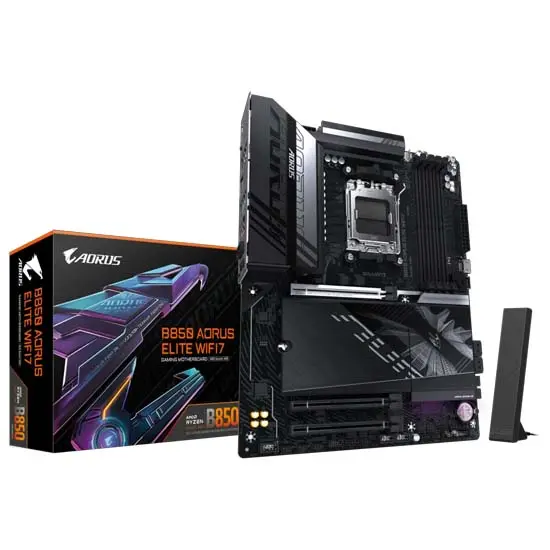

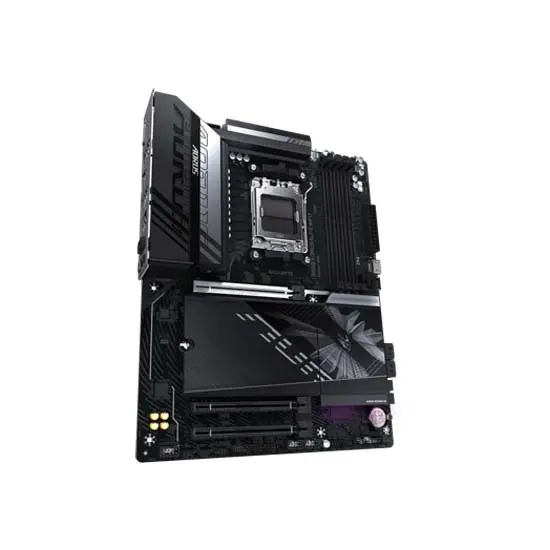

Name: Gigabyte B850 AORUS ELITE WIFI7
Brand: Gigabyte
SKU: MC-2443-V2GY
Price: 20990 INR
Availability: InStock

Description
Reviews (0)

Specification	Details
CPU	AMD Socket AM5 Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors (See GIGABYTE website for latest CPU support list)
Chipset	AMD B850
Memory	Supports DDR5 8200(OC) to 4400 MT/s 4 × DDR5 DIMM sockets, max 256 GB (64 GB per DIMM) Dual channel memory architecture Non-ECC, Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 Supports AMD EXPO™ and XMP profiles (Supported memory may vary by CPU; see Memory Support List)
Onboard Graphics	Integrated AMD Radeon™ Graphics (CPU dependent) - 1 × DisplayPort 1.4, max 3840x2160@144Hz, HDR - 1 × Front HDMI 1.4 port, max 1920x1080@30Hz
Audio	Realtek® Audio CODEC HD Audio 2/4/5.1/7.1-channel Supports S/PDIF Out
LAN	Realtek® 2.5GbE LAN (2.5 / 1 / 0.1 Gbps)
Wireless	Realtek® Wi-Fi 7 RTL8922AE 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz) Bluetooth 5.4 Supports 11be 160MHz (Wi-Fi 7 features require Windows 11 SV3)
Expansion Slots	1 × PCIe x16 (CPU) - Ryzen 9000/7000: PCIe 5.0 x16 - Ryzen 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen 8000 Phoenix 2: PCIe 4.0 x4 2 × PCIe x16 (Chipset), PCIe 3.0 x1
Storage Interface	1 × M.2 (M2A_CPU, CPU) PCIe 5.0/4.0 x4/x2 1 × M.2 (M2B_CPU, CPU) PCIe 4.0 x4/x2 1 × M.2 (M2C_SB, Chipset) PCIe 4.0 x4/x2 4 × SATA 6Gb/s RAID 0/1/5/10 (RAID 5 only Ryzen 9000)
USB	CPU: - 1 × USB Type-C® (USB 3.2 Gen2) - 2 × USB 3.2 Gen2 Type-A (red) CPU + USB 2.0 Hub: 4 × USB 2.0/1.1 Chipset: - 1 × USB Type-C® (USB 3.2 Gen2x2, internal) - 3 × USB 3.2 Gen1 (1 rear, 2 internal) - 4 × USB 2.0/1.1 (internal) Chipset + USB 3.2 Gen1 Hub: 4 × USB 3.2 Gen1 (rear)
Internal I/O Connectors	24-pin ATX power 8-pin ATX 12V power 4-pin ATX 12V power CPU fan header CPU fan/water pump header 3 × system fan headers 1 × system fan/water pump header 3 × addressable RGB Gen2 headers 1 × RGB LED header 3 × M.2 connectors 4 × SATA 6Gb/s Front panel header Front audio header USB Type-C header (USB 3.2 Gen2x2) USB 3.2 Gen1 header 2 × USB 2.0 headers TPM header HDMI port Power button, Reset button, Reset jumper, Clear CMOS jumper

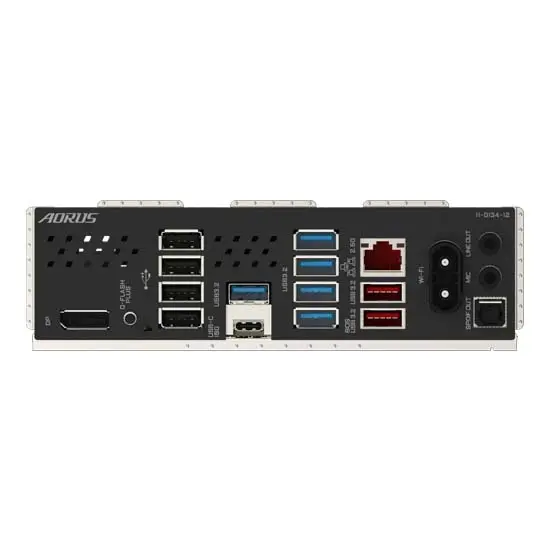

Back Panel Connectors	1 × DisplayPort 1 × Q-Flash Plus button 4 × USB 2.0/1.1 1 × USB Type-C® (USB 3.2 Gen2) 5 × USB 3.2 Gen1 2 × USB 3.2 Gen2 Type-A (red) 1 × RJ-45 LAN 2 × antenna connectors (2T2R) 2 × audio jacks 1 × optical S/PDIF Out
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control
BIOS	256 Mbit flash Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) Q-Flash / Q-Flash Plus Smart Backup
OS Support	Windows 11 64-bit
Form Factor	ATX; 30.5cm × 24.4cm
