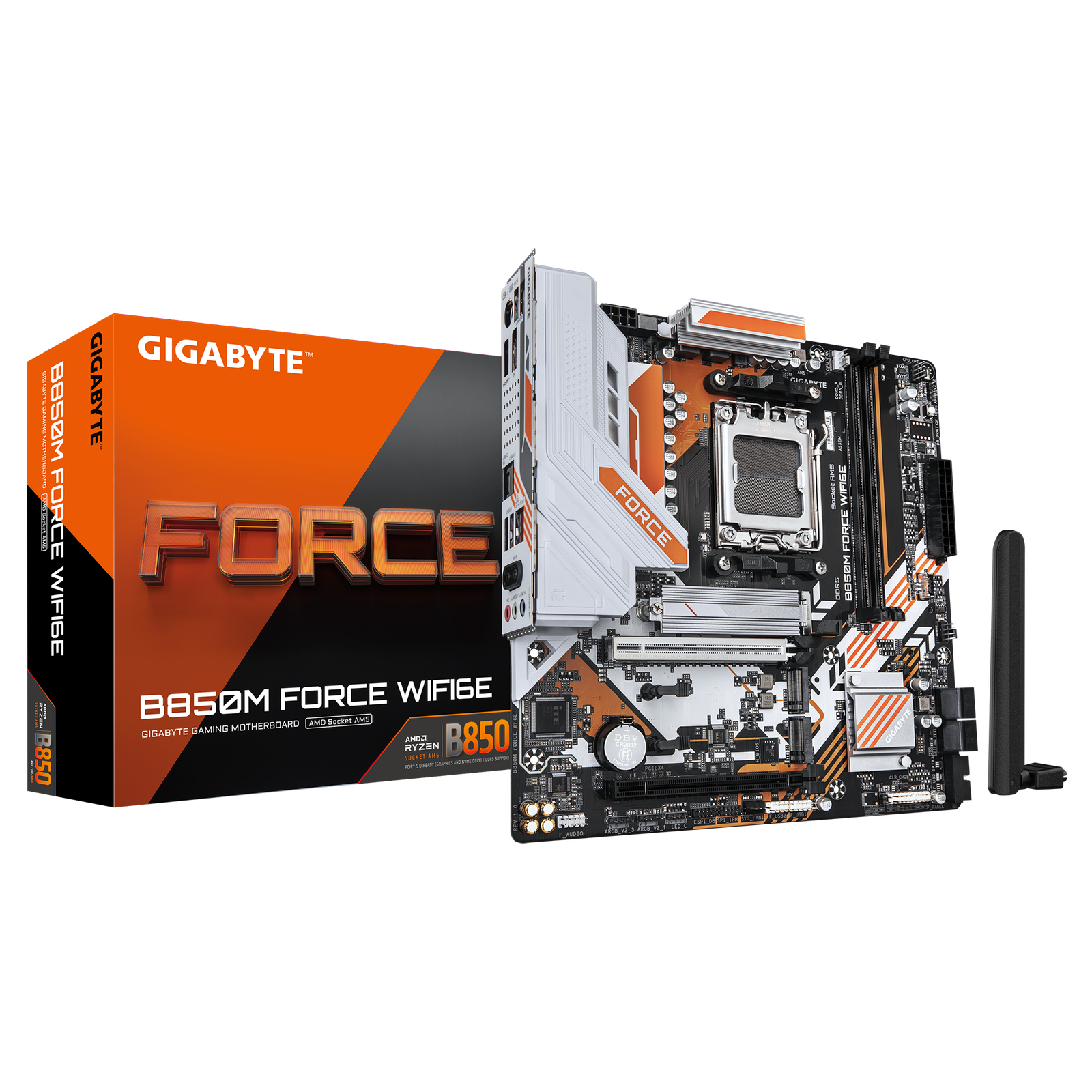

Name: Gigabyte B850M FORCE WIFI6E
Brand: Gigabyte
SKU: MC-2443-8OQA
Price: 12490 INR
Availability: OutOfStock

Description
Reviews (0)

Feature	Specification
CPU Socket	AMD Socket AM5
Supported Processors	AMD Ryzen™ 9000 Series AMD Ryzen™ 8000 Series AMD Ryzen™ 7000 Series
Chipset	AMD B850
Supported Memory	DDR5 9600(OC) / 9200(OC) / 8800(OC) / 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s
DIMM Sockets	2 × DDR5 DIMM sockets
Maximum Memory	Up to 128GB (64GB per DIMM)
Memory Architecture	Dual Channel
Supported Memory Modules	Non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 AMD EXPO™ Intel XMP
Integrated Graphics	AMD Radeon™ Graphics
HDMI Port	1 × HDMI (4096 × 2160 @60Hz, HDMI 2.1, HDCP 2.3, HDR)
DisplayPort	1 × DisplayPort (3840 × 2160 @144Hz, DP 1.4)
Audio	Realtek® Audio CODEC HD Audio 2 / 4 / 5.1 / 7.1-channel
LAN	Realtek® 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps)
Wi-Fi Module	MediaTek Wi-Fi 6E MT7902
Wi-Fi Standard	802.11 a / b / g / n / ac / ax (2.4 / 5 / 6 GHz)
Bluetooth	Bluetooth 5.3
PCIe x16 (CPU)	1 × PCIe slot (PCIe 5.0 x16 / PCIe 4.0 x8 / PCIe 4.0 x4)
PCIe x16 (Chipset)	1 × PCIe 4.0 x4
M.2 (M2A_CPU)	1 × PCIe 5.0 x4/x2 or PCIe 4.0 x4/x2
M.2 (M2B_CPU)	1 × PCIe 4.0 x4/x2 or PCIe 4.0 x2
M.2 (M2C_SB)	1 × PCIe 4.0 x2
SATA Ports	4 × SATA 6Gb/s
RAID Support	NVMe: RAID 0 / 1 / 5 / 10 SATA: RAID 0 / 1 / 10
USB (Back Panel)	1 × USB Type-C® (USB 3.2 Gen1) 1 × USB 3.2 Gen2 Type-A 1 × USB 2.0/1.1
USB (Internal Headers)	1 × USB Type-C® (USB 3.2 Gen1) 1 × USB 3.2 Gen1 header 2 × USB 2.0 headers
Additional USB	4 × USB 3.2 Gen1 (2 back, 2 internal) 5 × USB 2.0 (1 back, 4 internal)
Power Connectors	1 × 24-pin ATX 1 × 8-pin ATX 12V
Fan Headers	1 × CPU Fan 1 × CPU Fan/Pump 1 × System Fan 1 × System Fan/Pump
RGB Headers	3 × Addressable RGB Gen2 1 × RGB LED
Other Internal Headers	3 × M.2 Socket 3 4 × SATA Front Panel Front Audio USB Type-C® header USB 3.2 Gen1 header 2 × USB 2.0 TPM Reset Jumper Clear CMOS Jumper Q-Flash Plus Button

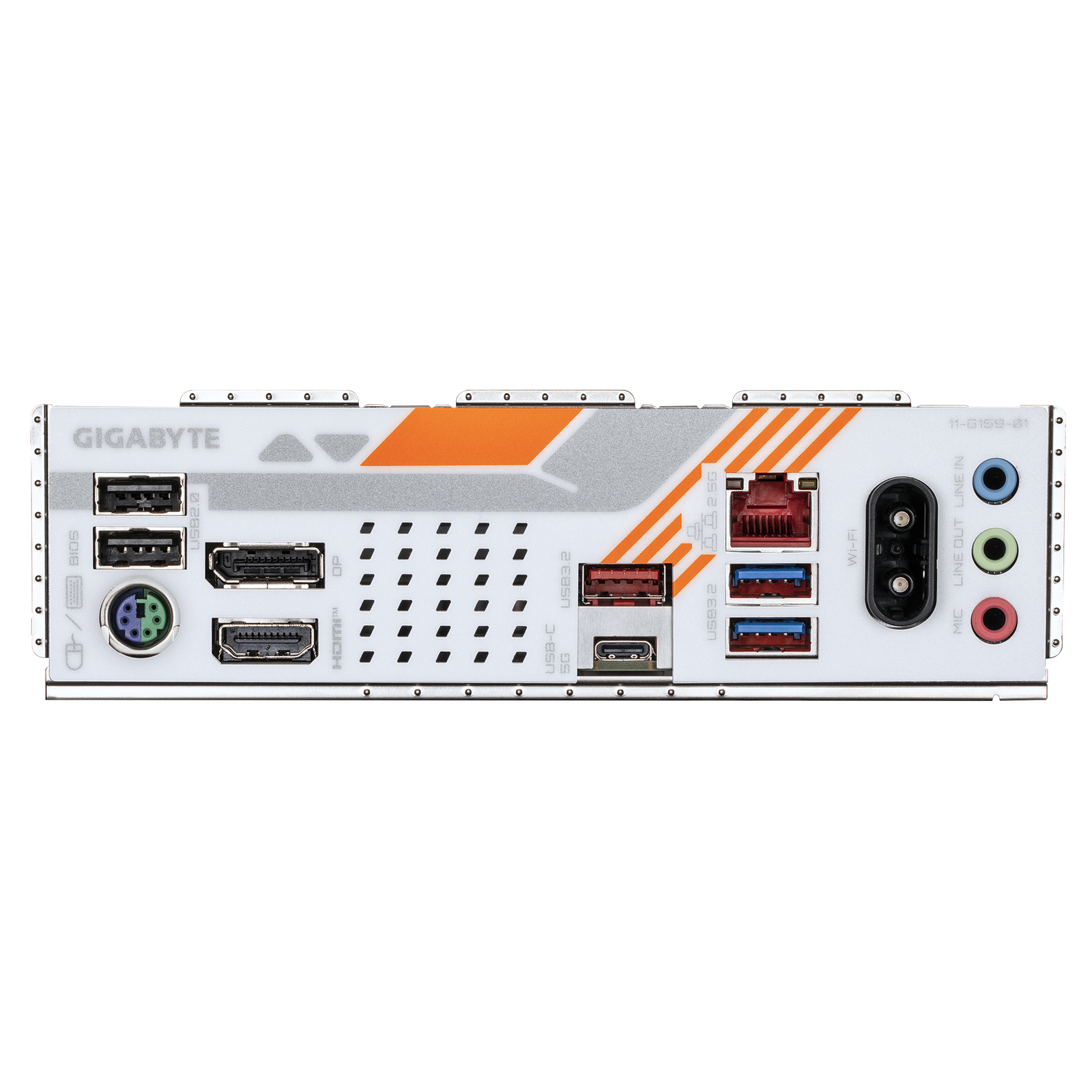

Back Panel Ports	1 × HDMI 1 × DisplayPort 1 × PS/2 1 × USB Type-C® 2 × USB 3.2 Gen1 1 × USB 3.2 Gen2 Type-A 2 × USB 2.0 1 × RJ-45 2 × Antenna 3 × Audio Jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage Temperature Fan Speed Water Flow Detection Fan Fail Warning Fan Speed Control
BIOS	1 × 256Mbit Flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus Smart Backup
Bundled Software	Norton® Internet Security (OEM)
Operating System	Windows 11 64-bit Windows 10 64-bit
Form Factor	Micro ATX (24.4 cm × 24.4 cm)
Note	Features, price, and specifications are subject to change without notice. Images are for representation only.
