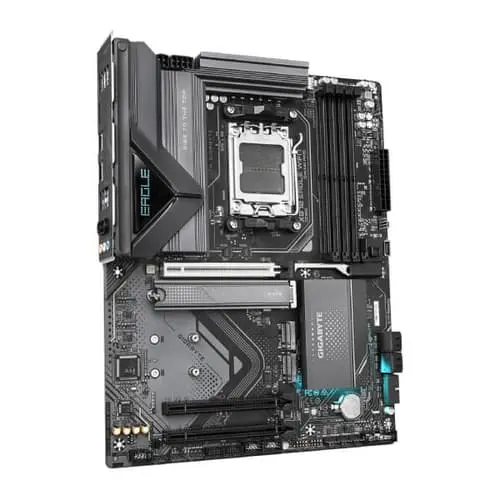

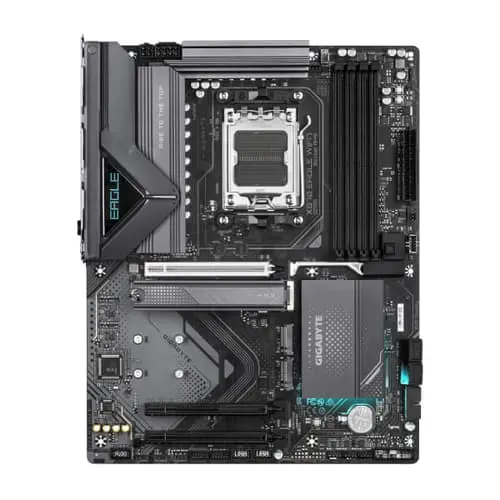

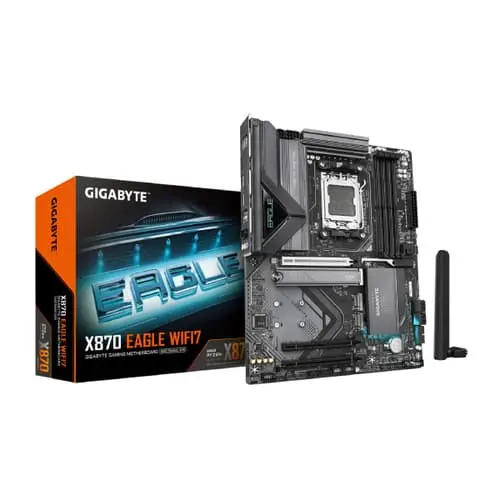

Name: Gigabyte X870 EAGLE WIFI7 AMD Motherboard
SKU: MC-2443-SJAH
Price: 23290 INR
Availability: InStock

Description
Reviews (0)

Specification	Details
Model	X870 EAGLE WIFI7
CPU	AMD Socket AM5, supports: • AMD Ryzen 9000 Series Processors • AMD Ryzen 8000 Series Processors • AMD Ryzen 7000 Series Processors (Refer to GIGABYTE website for latest CPU support list)
Chipset	AMD X870
Memory	Supports DDR5: 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s 4 × DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) Dual channel memory Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Supports AMD EXPO™ and XMP modules * CPU and memory configuration may affect supported memory type, speed, and number of DRAM modules (see "Memory Support List" on GIGABYTE website)
Onboard Graphics	Integrated AMD Radeon Graphics: • 2 × USB4 Type-C ports (DisplayPort video output, max 3840×2160 @ 240Hz) • 1 × HDMI port (max 4096×2160 @ 60Hz) Supports DisplayPort 1.4, HDMI 2.1, HDR, HDCP 2.3 * Actual graphics support depends on CPU
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel configurable via software
LAN	Realtek 2.5GbE LAN chip (2.5/1/0.1 Gbps)
Wireless Communication	MediaTek Wi-Fi 7 MT7925 (PCB rev.1.0) / Realtek Wi-Fi 7 RTL8922AE (PCB rev.1.1) Supports 802.11 a/b/g/n/ac/ax/be on 2.4/5/6 GHz bands Bluetooth 5.4 Supports 11be 160MHz wireless standard * Wi-Fi 7 features require Windows 11 SV3
Expansion Slots	• 1 × PCIe x16 (CPU, supports PCIe 5.0/4.0 depending on CPU) • 2 × PCIe x16 (Chipset, PCIe 3.0, run at x1) * PCIEX16 slot supports graphics card or NVMe SSD only
Storage Interface	• 3 × M.2 Socket 3 (PCIe 5.0/4.0/4.0 x4/x2 depending on CPU/slot) • 4 × SATA 6Gb/s connectors RAID 0/1/5/10 for NVMe, RAID 0/1/10 for SATA * RAID 5 only on Ryzen 9000 series processors
USB	CPU + ASMedia USB4: 2 × USB4 Type-C (back) CPU: 1 × USB 3.2 Gen2 Type-A (red), 1 × USB 3.2 Gen1 (back), 4 × USB 2.0/1.1 (back) Chipset: 1 × USB Type-C Gen2x2 (internal header), 4 × USB 3.2 Gen1 (2 back, 2 internal), 4 × USB 2.0/1.1 (internal)
Internal I/O Connectors	1 × 24-pin ATX power 1 × 8-pin ATX 12V 1 × 4-pin ATX 12V 1 × CPU fan header 1 × CPU fan/water pump header 4 × system fan headers 3 × Addressable RGB Gen2 LED headers 1 × RGB LED header 4 × SATA 6Gb/s 3 × M.2 connectors Front panel, audio header USB 3.2/2.0 headers TPM header Power button, reset button, reset jumper, Clear CMOS jumper

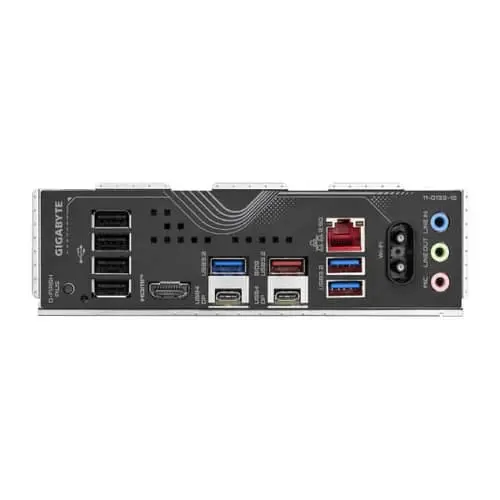

Back Panel Connectors	1 × Q-Flash Plus button 2 × antenna connectors (2T2R) 1 × HDMI 2 × USB4 Type-C (DisplayPort) 1 × USB 3.2 Gen2 Type-A (red) 3 × USB 3.2 Gen1 4 × USB 2.0/1.1 1 × RJ-45 LAN 3 × audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water flow detection, fan fail warning, fan speed control * Function depends on installed fan/pump
BIOS	256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus Smart Backup
Bundled Software	Norton Internet Security (OEM), LAN bandwidth management software
Operating System	Windows 11 64-bit
Form Factor	ATX, 30.5 × 24.4 cm
Warranty	3 Years
Note	* Images are for representation purposes only. * Features, price, and specifications are subject to change without notice.
