Name: Gigabyte X870 Gaming WIFI6 AMD Motherboard
Brand: Gigabyte
SKU: MC-2443-L8BS
Price: 20990 INR
Availability: OutOfStock

Description
Reviews (0)

Specification	Details
Model	X870 GAMING WIFI6
CPU	AMD Socket AM5 Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Chipset	AMD X870
Memory	Supports DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s 4 × DDR5 DIMM sockets, maximum 256 GB (64 GB per DIMM) Dual channel memory architecture Supports Non-ECC, Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 Supports AMD EXPO™ and XMP memory profiles
Onboard Graphics	Integrated AMD Radeon™ Graphics (CPU dependent) ASMedia USB4 Controller: - 2 × USB4 Type-C ports, supports USB4 & DisplayPort video, max 3840x2160@240Hz Integrated graphics HDMI port: - 1 × HDMI 2.1 port, max 4096x2160@60Hz, HDCP 2.3 & HDR
Audio	Realtek Audio CODEC High Definition Audio Supports 2 / 4 / 5.1 / 7.1 channels
LAN	Realtek 2.5GbE LAN chip (2.5 Gbps / 1 Gbps / 100 Mbps)
Wireless	Realtek Wi-Fi 6 RTL8851BE Supports 2.4 / 5 GHz bands, 802.11 a/b/g/n/ac/ax Bluetooth 5.3 11ax 80MHz wireless standard
Expansion Slots	1 × PCIe x16 slot (CPU) - Ryzen 9000 / 7000: PCIe 5.0 x16 - Ryzen 8000 Phoenix 1: PCIe 4.0 x8 - Ryzen 8000 Phoenix 2: PCIe 4.0 x4 2 × PCIe x16 slots (Chipset) at PCIe 3.0 x1
Storage Interface	1 × M.2 (M2A_CPU, CPU integrated, Socket 3, M key) PCIe 5.0/4.0 x4/x2 1 × M.2 (M2C_SB, Chipset integrated, PCIe 4.0 x2) 1 × M.2 (M2B_SB, Chipset integrated, PCIe 4.0 x4/x2) 4 × SATA 6Gb/s connectors RAID 0 / 1 / 5 / 10 (RAID 5 only for Ryzen 9000)
USB	CPU + ASMedia USB4 controller: - 2 × USB4 Type-C (rear) CPU: - 1 × USB 3.2 Gen 2 Type-A (red) - 1 × USB 3.2 Gen 1 Chipset + 2 × USB 2.0 Hubs: - 8 × USB 2.0/1.1 ports (4 rear, 4 internal) Chipset: - 1 × USB Type-C (USB 3.2 Gen 2x2) - 4 × USB 3.2 Gen 1 (2 rear, 2 internal) - 4 × USB 2.0/1.1 (internal)
Internal I/O Connectors	24-pin ATX power 8-pin ATX 12V power 4-pin ATX 12V power CPU fan header CPU fan / water pump header 4 × System fan headers 3 × Addressable RGB Gen2 LED headers 1 × RGB LED header 4 × SATA 6Gb/s 3 × M.2 Socket 3 connectors Front panel header Front panel audio header USB Type-C header (USB 3.2 Gen 2x2) USB 3.2 Gen 1 header 4 × USB 2.0 headers TPM header Reset jumper Clear CMOS jumper

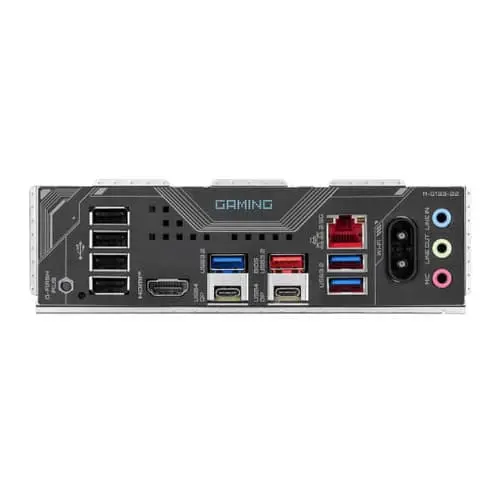

Back Panel Connectors	1 × Q-Flash Plus button 2 × SMA antenna connectors 1 × HDMI port 2 × USB4 Type-C (DisplayPort) 1 × USB 3.2 Gen 2 Type-A (red) 3 × USB 3.2 Gen 1 4 × USB 2.0/1.1 1 × RJ-45 LAN 3 × Audio Jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control (*Dependent on installed fan/pump)
BIOS	256 Mbit flash Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) Q-Flash Q-Flash Plus Smart Backup
Bundled Software	Norton Internet Security (OEM) LAN Bandwidth Management Software
Operating System	Windows 11 64-bit Windows 10 64-bit
Form Factor	ATX Form Factor 30.5 cm × 24.4 cm
Warranty	3 Years
Note	Images are for representation only Features, price, and specifications are subject to change without notice
