Name: Gigabyte X870E Aorus Elite WIFI7 Motherboard
Brand: Gigabyte
SKU: MC-2443-PP2D
Price: 32990 INR
Availability: OutOfStock

Description
Reviews (0)

Category	Specification
Model Name	X870E AORUS ELITE WIFI7
CPU Support	AMD Socket AM5 — Ryzen™ 9000 / 8000 / 7000 Series Processors (Refer to GIGABYTE website for latest CPU support list)
Chipset	AMD X870E
Memory	DDR5 8200(OC) → 4400 MT/s 4 × DDR5 DIMM sockets, max 256 GB (64 GB per DIMM) Dual channel, non-ECC unbuffered DIMMs Supports AMD EXPO™ / XMP
Onboard Graphics	2 × USB4® Type-C (DP output, 3840×2160@240Hz) 1 × HDMI (4096×2160@60Hz, HDMI 2.1) 1 × Front HDMI (1920×1080@30Hz, HDMI 1.4) Supports up to quad-display simultaneously
Audio	Realtek® ALC1220 CODEC High Definition Audio, 2/4/5.1/7.1-channel S/PDIF Out Back panel line out supports DSD audio
LAN	Realtek® 2.5GbE LAN chip (2.5 / 1 / 0.1 Gbps)
Wireless	MediaTek Wi-Fi 7 MT7925 & Realtek Wi-Fi 7 RTL8922AE 802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz bands Bluetooth 5.4, supports 11be 160MHz standard
Expansion Slots	CPU: 1 × PCIe x16 (Ryzen 9000/7000: PCIe 5.0 x16) Chipset: 1 × PCIe x16 (PCIe 4.0 x4), 1 × PCIe x16 (PCIe 3.0 x4) * PCIEX16 slot may reduce speed if M2B_CPU or M2C_CPU is populated
Storage Interface	1 × M2A_CPU (PCIe 5.0 x4/x2) 2 × M2B_CPU / M2C_CPU (PCIe 5.0 x4/x2; unavailable on Ryzen 8000 Phoenix) 1 × M2D_SB (PCIe 4.0 x4/x2) 4 × SATA 6Gb/s RAID NVMe: 0/1/5/10 (RAID5 only Ryzen 9000) RAID SATA: 0/1/10
USB	Rear: 2 × USB4 Type-C, 1 × USB 3.2 Gen1, 2 × USB 3.2 Gen2 Type-A (red), 4 × USB 3.2 Gen1, 4 × USB 2.0/1.1 Internal: 1 × USB Type-C (USB 3.2 Gen 2x2), 4 × USB 3.2 Gen1, 4 × USB 2.0/1.1
Internal I/O Connectors	24-pin ATX, 2 × 8-pin CPU power CPU fan / pump headers × 2 System fan headers × 4 RGB × 1, ARGB Gen2 × 3 4 × M.2 Socket 3 4 × SATA 6Gb/s Front panel, audio, USB headers TPM header, HDMI port, power/reset buttons, Clear CMOS jumper

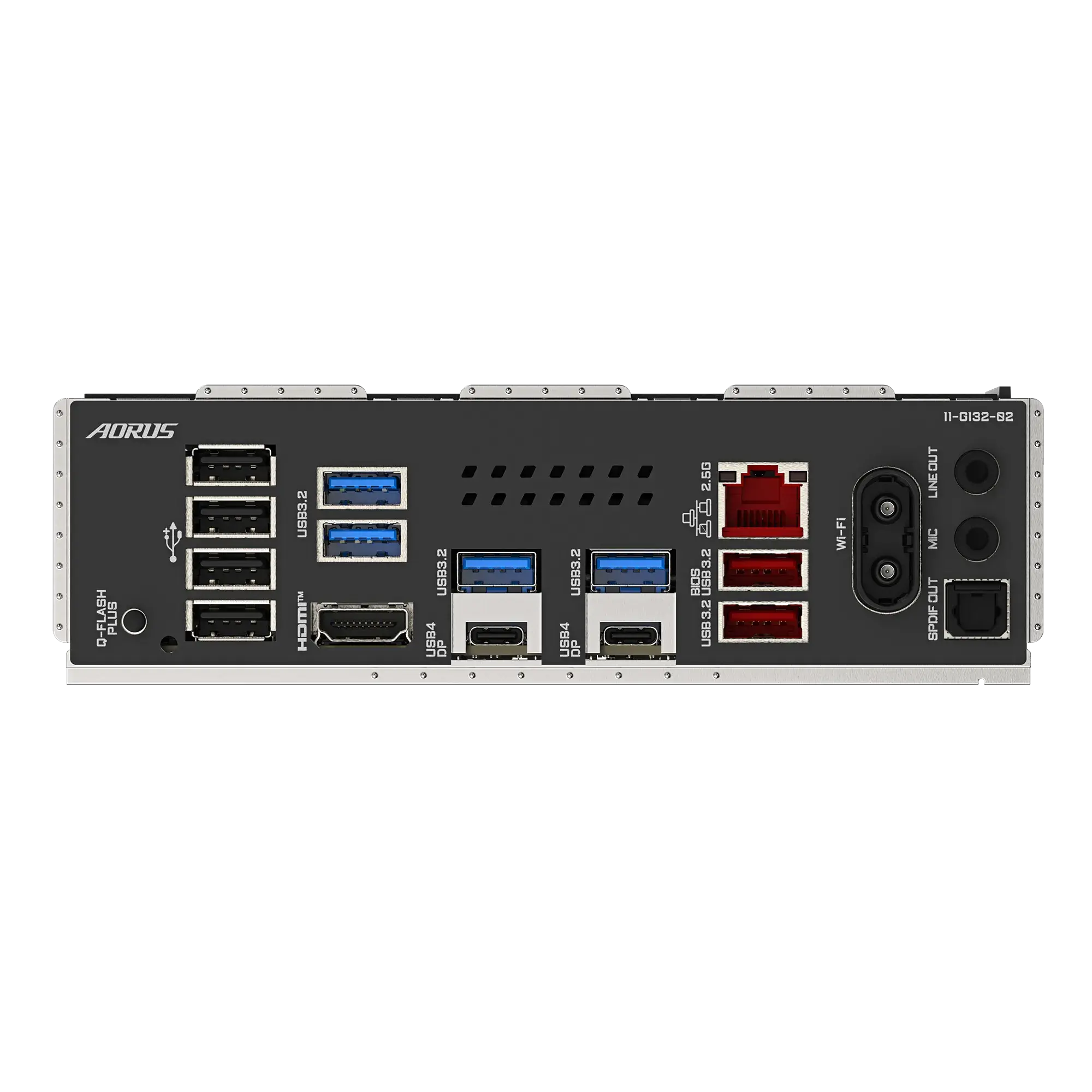

Back Panel Connectors	Q-Flash Plus button 4 × USB 2.0/1.1 4 × USB 3.2 Gen1 1 × HDMI 2 × USB4 Type-C (DP) 2 × USB 3.2 Gen2 Type-A (red) 2 × Wi-Fi antennas 2 × Audio jacks + Optical S/PDIF 1 × RJ-45 LAN
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow, fan fail warning, fan speed control, noise detection
BIOS	1 × 256 Mbit AMI UEFI BIOS
Unique Features	GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management software
Operating System	Windows 11 64-bit
Form Factor	ATX, 30.5 × 24.4 cm
Warranty	3 Years
