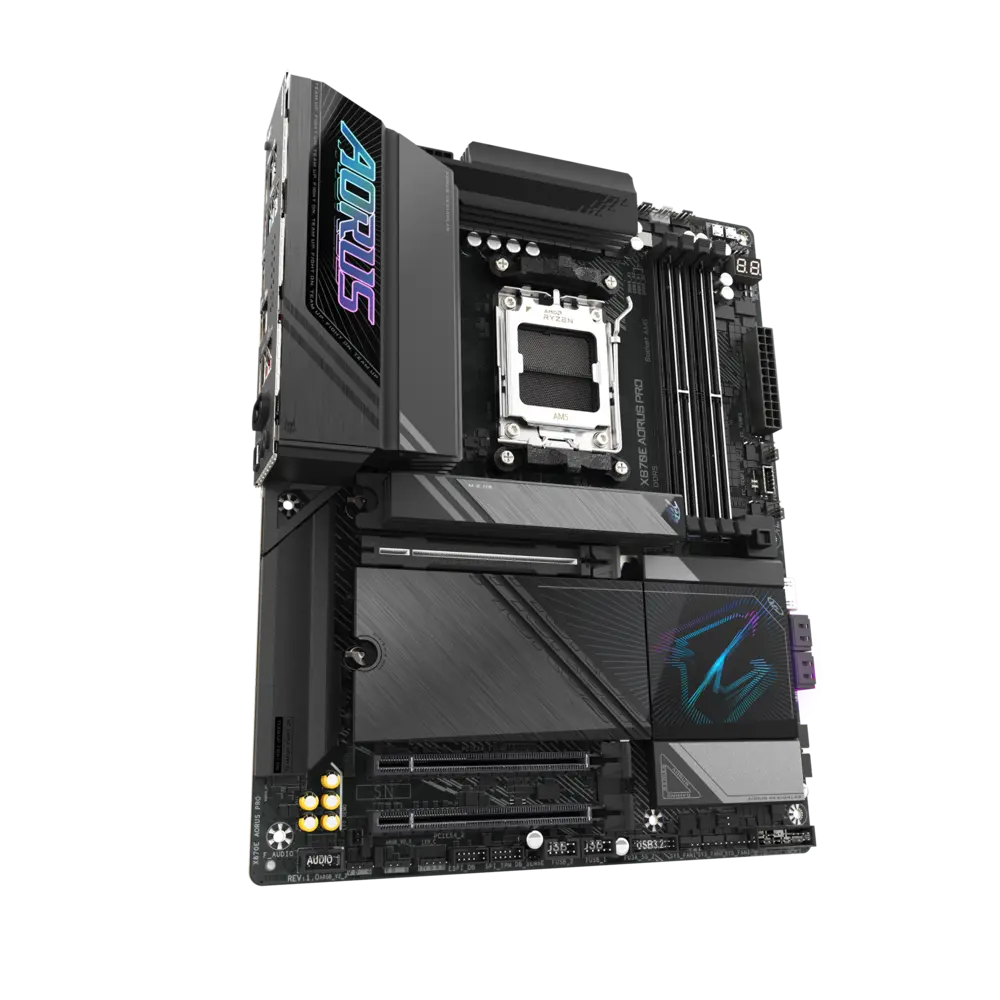

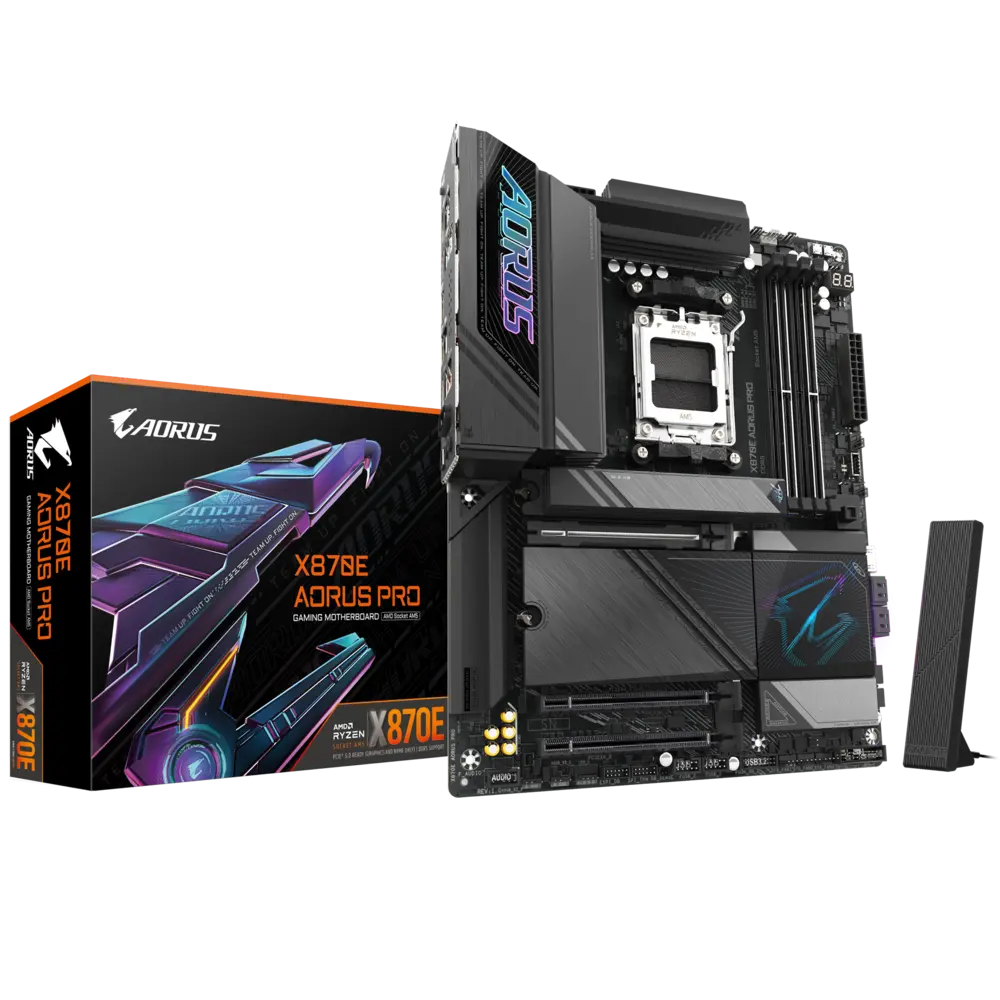

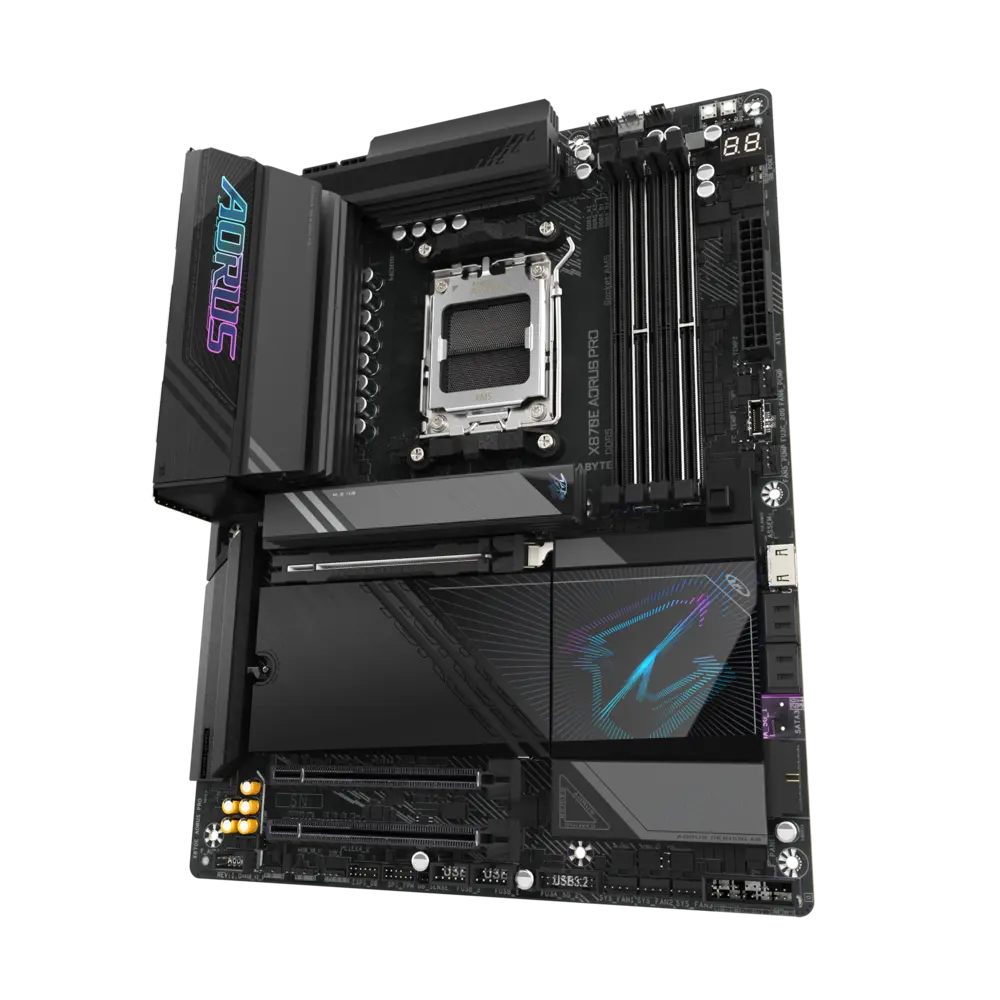

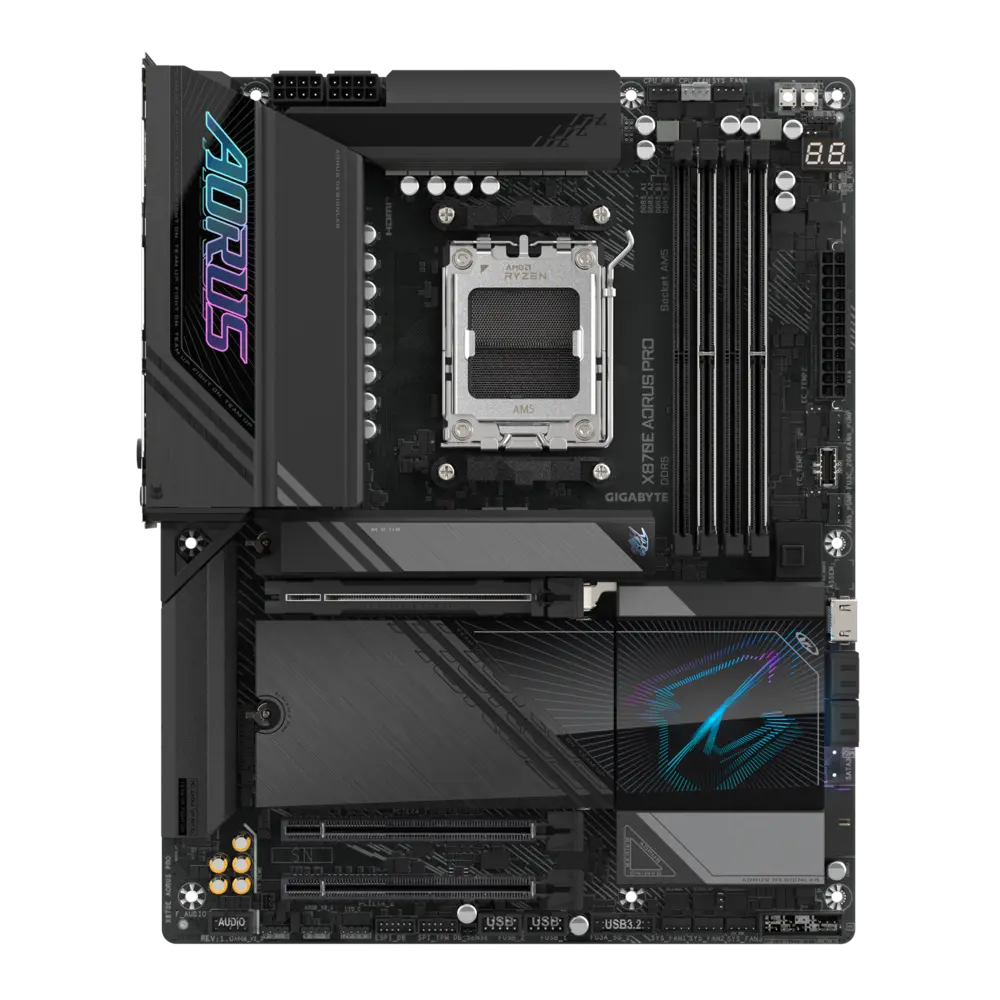

Name: Gigabyte X870E Aorus Pro WIFI Motherboard
Brand: Gigabyte
SKU: MC-2443-LRYC
Price: 36490 INR
Availability: OutOfStock

Description
Reviews (0)

Category	Specification
Model	X870E AORUS PRO
CPU Support	AMD Socket AM5, supporting: - AMD Ryzen 9000 Series Processors - AMD Ryzen 8000 Series Processors - AMD Ryzen 7000 Series Processors * For latest CPU support, refer to GIGABYTE's website
Chipset	AMD X870E
Memory	4 × DDR5 DIMM slots, up to 256 GB (64 GB per DIMM) Supported speeds: DDR5 8200(OC) → 4400 MT/s Dual-channel architecture Non-ECC Un-buffered 1Rx8/2Rx8/1Rx16 modules Supports AMD EXPO™ and XMP memory modules * CPU and memory configuration may affect supported memory types and speed; see "Memory Support List" on GIGABYTE's website
Onboard Graphics	Integrated AMD Radeon Graphics + ASMedia USB4 Controller: - 2 × USB4 Type-C (DisplayPort, max 3840x2160@240Hz) - 1 × HDMI port (max 4096x2160@60Hz, HDMI 2.1, HDCP 2.3) - 1 × Front HDMI port (max 1920x1080@30Hz, HDMI 1.4) * Graphics specs may vary depending on CPU support
Audio	Realtek ALC1220 CODEC Supports 2/4/5.1/7.1-channel audio Back panel line out supports DSD audio S/PDIF Out supported Audio jack functionality configurable via software
LAN	Realtek 2.5GbE LAN (2.5/1/0.1 Gbps)
Wireless & Bluetooth	Qualcomm Wi-Fi 7 QCNCM865 802.11 a/b/g/n/ac/ax/be, 2.4/5/6 GHz Bluetooth 5.3 Supports 11be 320MHz wireless standard * Wi-Fi 7 requires Windows 11 SV3; 6 GHz band depends on country regulations
Expansion Slots	CPU-integrated: - 1 × PCIe x16 (PCIEX16) slot, PCIe 5.0 x16 (Ryzen 9000/7000) * M2B_CPU or M2C_CPU connectors populated reduces PCIEX16 to x8 Chipset: - 1 × PCIe x16 slot, PCIe 4.0 x4 (PCIEX4_1) - 1 × PCIe x16 slot, PCIe 3.0 x4 (PCIEX4_2)
Storage	CPU-integrated M.2: - 1 × M2A_CPU (PCIe 5.0 x4/x2 with Ryzen 9000/7000) - 2 × M2B_CPU & M2C_CPU (PCIe 5.0 x4/x2 with Ryzen 9000/7000; unavailable with Ryzen 8000) Chipset M.2: - 1 × M2D_SB, PCIe 4.0 x4/x2 4 × SATA 6Gb/s connectors RAID: NVMe RAID 0/1/5/10, SATA RAID 0/1/10 RAID 5 only on Ryzen 9000
USB	CPU + ASMedia USB4: 2 × USB4 Type-C (back panel) CPU: 1 × USB 3.2 Gen2 Type-A (red, back panel) Chipset: - 1 × USB Type-C w/ USB 3.2 Gen 2x2 (internal) - 2 × USB 3.2 Gen2 Type-A (red, back panel) - 8 × USB 3.2 Gen1 (4 back panel, 4 internal) - 6 × USB 2.0/1.1 (2 back panel, 4 internal)
Internal I/O	1 × 24-pin ATX 2 × 8-pin ATX 12V 1 × CPU fan header 1 × CPU fan/water pump header 4 × system fan headers 2 × system fan/water pump headers 3 × Addressable RGB Gen2 headers 1 × RGB header 4 × SATA 6Gb/s 4 × M.2 Front panel, audio, USB Type-C w/ Gen2x2, 2 × USB 3.2 Gen1, 2 × USB 2.0/1.1, noise detection, HDMI, TPM, power/reset buttons, temp sensors, Clear CMOS jumper
Back Panel	Q-Flash Plus button 2 × USB 2.0/1.1 1 × HDMI 4 × USB 3.2 Gen1 2 × USB4 Type-C (DisplayPort) 3 × USB 3.2 Gen2 Type-A (red) 1 × RJ-45 2 × antenna connectors (2T2R) 1 × optical S/PDIF Out 2 × audio jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage, Temperature, Fan Speed, Water Flow Detection, Fan Fail Warning, Fan Speed Control, Noise Detection * Fan/pump speed control depends on installed device
BIOS	256 Mbit flash, AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus, Smart Backup * GCC app availability varies by motherboard model
Bundled Software	Norton Internet Security (OEM) LAN bandwidth management software
Operating System	Windows 11 64-bit
Form Factor	ATX (30.5 × 24.4 cm)
Warranty	3 Years
Note	Images for representation only. Features, Price, Specifications subject to change without notice.
