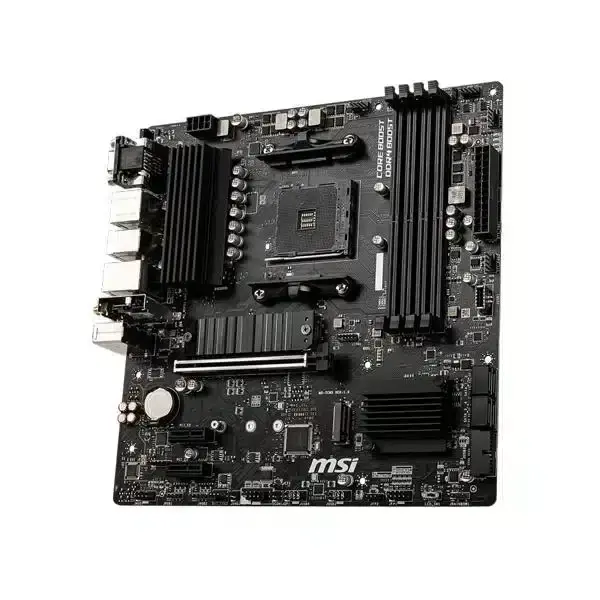

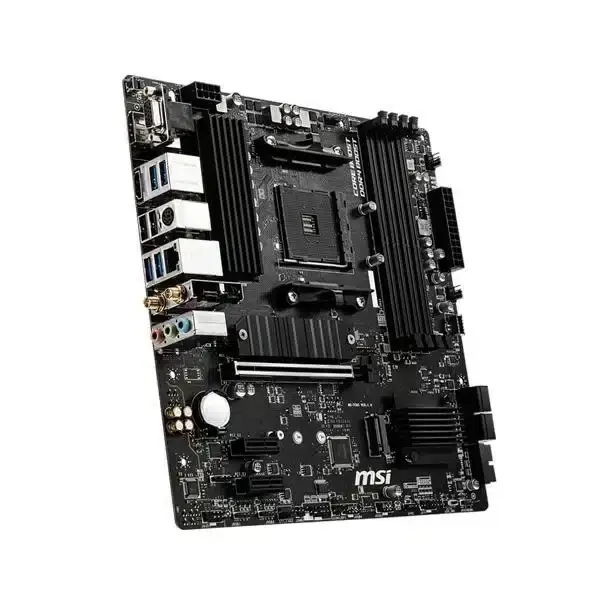

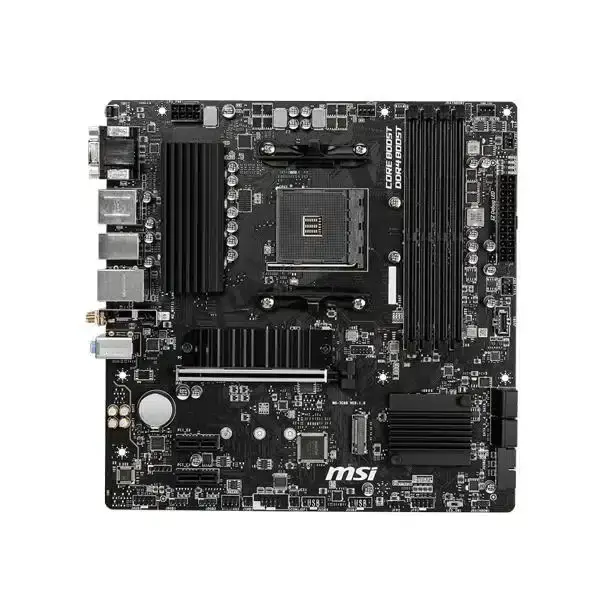

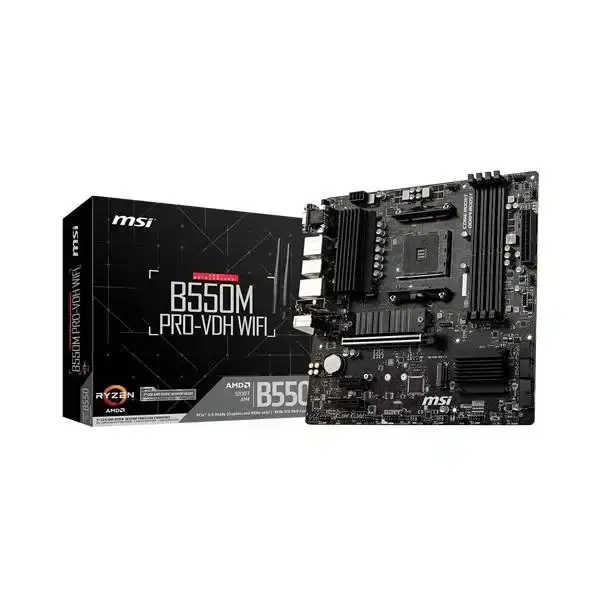

Name: MSI B550M PRO-VDH WIFI
Brand: MSI
SKU: MC-2443-GCB7
Price: 9890 INR
Availability: OutOfStock

Description
Reviews (0)

Category	Details
CPU	Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors.
Chipset	AMD B550 Chipset
Memory	4 × DDR4 slots, up to 128GB. JEDEC: 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz. A-XMP OC: 2667 / 2800 / 2933 / 3000 / 3066 / 3200 / 3466 / 3600 / 3733 / 3866 / 4000 / 4133 / 4266 / 4400+ MHz. 1DPC 1R max 4400 MHz, 1DPC 2R max 3733 MHz. 2DPC 1R max 3866 MHz, 2DPC 2R max 3466 MHz. Dual channel, non-ECC & ECC UDIMM, un-buffered, XMP support.
Expansion Slot	1 × PCIe 4.0 / 3.0 x16 (PCI_E1). 2 × PCIe 3.0 x1 slots. (Specifications depend on installed CPU.)
Onboard Graphics	1 × VGA (max 2048×1536@50Hz / 2048×1280@60Hz / 1920×1200@60Hz). 1 × DisplayPort (max 4096×2160@60Hz). 1 × HDMI (max 4096×2160@24Hz). Max shared memory: 16GB (requires CPU with integrated graphics).
Storage	4 × SATA 6Gb/s ports. 2 × M.2 slots (Key M). M2_1: PCIe 4.0 / 3.0 x4, SATA 6Gb/s, 2242 / 2260 / 2280 (from CPU). M2_2: PCIe 3.0 x4, 2242 / 2260 / 2280 (from B550 chipset).
RAID	RAID 0 / 1 / 10 for SATA. RAID 0 / 1 for M.2 NVMe.
USB	CPU: 4 × USB 3.2 Gen 1 Type-A ports (back panel). B550 Chipset: 3 × USB 3.2 Gen 1 (1 Type-C internal + 2 via internal header), 6 × USB 2.0 (2 back panel, 4 internal).
Audio	Realtek® ALC892 Codec, 7.1-Channel HD Audio
LAN	1 × Realtek® 8111HN Gigabit LAN
Internal Connectors	1 × 24-pin ATX. 1 × 8-pin ATX 12V. 4 × SATA 6Gb/s. 2 × M.2 slots. USB 3.2 Gen1 Type-C and USB headers. CPU fan, water-pump fan, 3 system fan headers. Front panel audio, system panel connectors. Serial port, chassis intrusion. 2 × RGB headers, 2 × RAINBOW LED headers. TPM header, Clear CMOS jumper.
Back Panel Ports	VGA, DisplayPort, HDMI. USB 3.2 Gen1 Type-A. USB 2.0. Keyboard / Mouse port. LAN port. Flash BIOS Button. Wi-Fi antenna connectors. 3 × Audio jacks.
Dimensions	Micro-ATX, 24.4 cm × 24.4 cm (9.6" × 9.6")
Mounting	8 mounting holes
Warranty	3 Years
Note	Features, price, and specifications are subject to change without notice.
