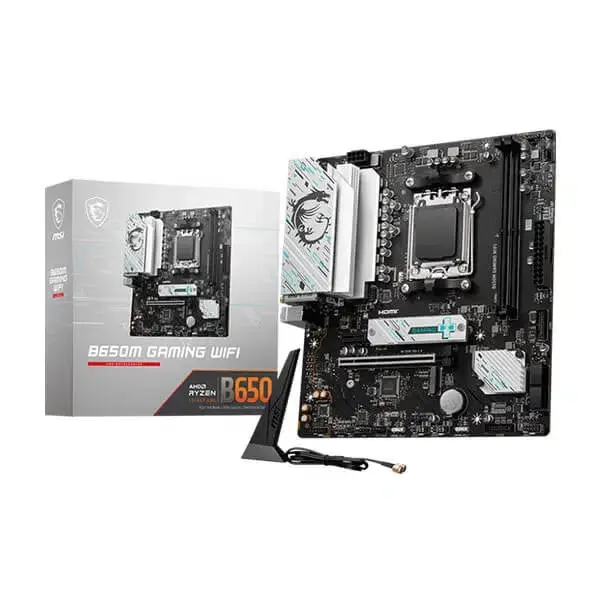

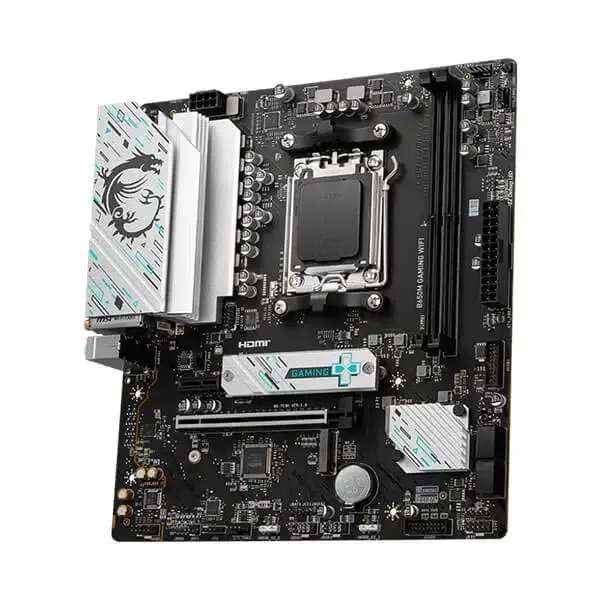

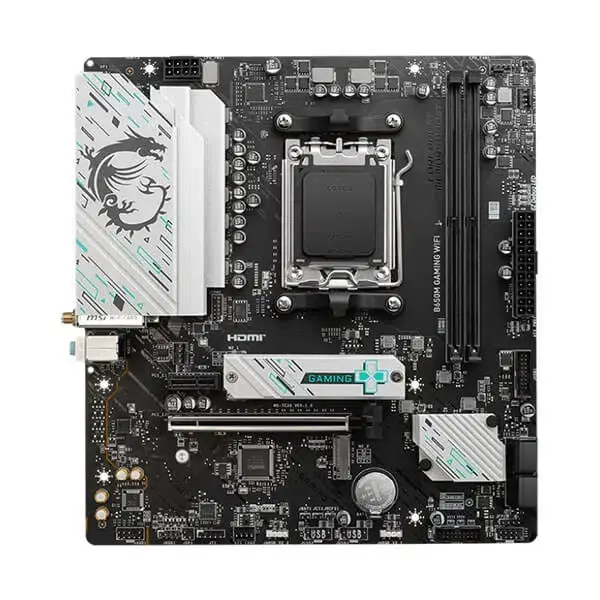

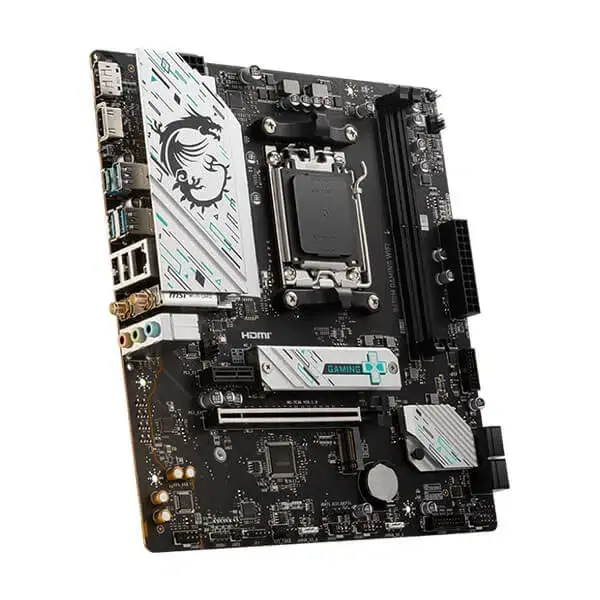

Name: MSI B650M Gaming WIFI Motherboard
Brand: MSI
SKU: MC-2443-MFYW
Price: 10590 INR
Availability: InStock

Description
Reviews (0)

Specification	Details
Model	B650M GAMING WIFI
Chipset	AMD B650
CPU	Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Socket	AM5
Memory	2 × DDR5 DIMM slots, Maximum Memory Capacity 96GB Supported speeds: DDR5 7800+(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 5000(OC) / 4800(JEDEC) MHz Max overclocking frequency: • 1DPC 1R: up to 7800+ MHz • 1DPC 2R: up to 6400+ MHz Supports Dual-Channel mode, non-ECC, un-buffered memory, AMD EXPO™
Onboard Graphics	1 × HDMI™ (supports HDMI 2.1, max 4K 60Hz) 1 × DisplayPort (supports DP 1.4, max 4K 60Hz) *Available only on processors with integrated graphics. Specifications may vary by CPU.
Expansion Slots	1 × PCI-E x16 slot • x16 for Ryzen™ 7000 • x8 for Ryzen™ 7 8700G / Ryzen™ 5 8600G • x4 for Ryzen™ 5 8500G 1 × PCI-E x1 slot PCI_E1 Gen PCIe 3.0 up to x1 (from chipset) PCI_E2 Gen PCIe 4.0 up to x16 (from CPU)
Storage	2 × M.2 slots: • M.2_1 (CPU) – PCIe 4.0 x4, supports 2280 devices • M.2_2 (CPU) – PCIe 4.0 x4, supports 2280 devices 4 × SATA 6Gb/s ports * M2_2 supports PCIe 4.0 x2 when Ryzen™ 5 8500G is installed
RAID	Supports RAID 0 / 1 / 10 for SATA storage devices Supports RAID 0 / 1 / 10 for M.2 NVMe storage devices
USB	Rear: • 2 × USB 2.0 • 3 × USB 3.2 Gen1 Type-A • 1 × USB 3.2 Gen1 Type-C Front: • 4 × USB 2.0 • 4 × USB 3.2 Gen1 Type-A
LAN	Realtek® RTL8125BG 2.5Gbps LAN
Wireless & Bluetooth	AMD Wi-Fi 6E (pre-installed in M.2 Key-E slot) Supports MU-MIMO TX/RX 20 / 40 / 80 / 160 MHz bandwidth in 2.4GHz / 5GHz / 6GHz bands* Supports 802.11 a/b/g/n/ac/ax Bluetooth® 5.3** 6GHz Wi-Fi depends on country regulations, ready in Windows 11. *Bluetooth 5.3 ready in Windows 10 build 21H1 and Windows 11
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O	1 × ATX_PWR 1 × CPU_PWR 1 × Front Type-C Quick Charge Connector (PD_PWR1) 1 × CPU Fan 3 × System Fan 2 × Front Panel (JFP) 1 × Chassis Intrusion (JCI) 1 × Front Audio (JAUD) 2 × Addressable V2 RGB LED connectors (JARGB_V2) 1 × RGB LED connector (JRGB) 1 × TPM pin header (TPM 2.0) 4 × USB 2.0 4 × USB 3.2 Gen1 Type-A
LED Features	4 × EZ Debug LED
Back Panel Ports	DisplayPort HDMI™ USB 3.2 Gen1 Type-A (5Gbps) USB 3.2 Gen1 Type-C (5Gbps) USB 3.2 Gen1 Type-A (5Gbps) USB 2.0 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
PCB Info	mATX – 226mm × 243.84mm
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
