MSI B850M Gaming Plus WIFI6E Motherboard

MSI B850M Gaming Plus WIFI6E Motherboard

Name: MSI B850M Gaming Plus WIFI6E Motherboard
Brand: MSI
SKU: MC-2443-ZOJR
Price: 15690 INR
Availability: OutOfStock

Brand: MSI

₹15,690.00 ₹28,000.00

(Including GST 18%)

Chat on WhatsApp

SKU:MC-2443-ZOJR

Categories:Motherboard

Description
Reviews (0)

Specification	Details
Supported CPU	AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Socket	AM5
Chipset	AMD B850
BIOS	Flash BIOS Button
Form Factor	mATX, 243.84mm × 243.84mm
Audio	Realtek ALC897, 7.1-Channel High Definition Audio
Expansion Slots	1 × PCI-E x16 slot 2 × PCI-E x1 slots • PCI_E1: PCIe 3.0 x1 (Chipset) • PCI_E2: PCIe 4.0 x16 (CPU) – Ryzen 9000/7000 • PCI_E2: PCIe 4.0 x8 – Ryzen 8700/8600/8400 • PCI_E2: PCIe 4.0 x4 – Ryzen 8500/8300 • PCI_E3: PCIe 3.0 x1 (Chipset)
M.2 Sockets	2 × M.2 slots M.2_1 (CPU): PCIe 5.0 x4, supports 2280/2260 devices M.2_2 (CPU): PCIe 4.0 x4, supports 2280/2260 devices 4 × SATA 6Gb/s ports
Memory	DDR5, 4 × UDIMM slots Supported: 8200–5600 (OC), 5600–4800 (JEDEC) MT/s Dual-Channel, Non-ECC, Un-buffered Supports AMD POR Speed, JEDEC, Overclocking, AMD EXPO™ Max Memory: 256 GB Ryzen 9000 OC max frequency: • 1DPC 1R: 8200+ MT/s • 1DPC 2R: 6400+ MT/s • 2DPC 1R: 6400+ MT/s • 2DPC 2R: 6000+ MT/s
Graphics	1 × HDMI 2.1, max 4K 60Hz 1 × DisplayPort 1.4, max 4K 60Hz

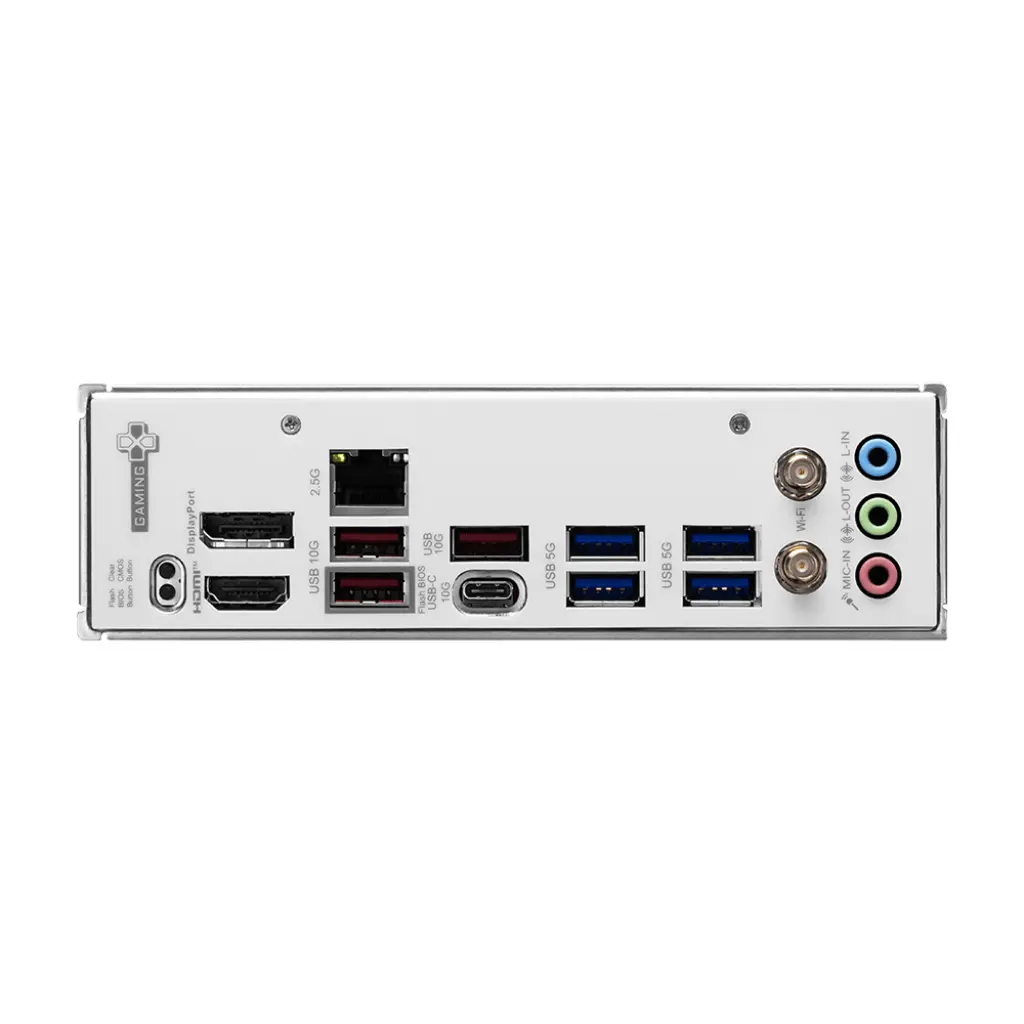

USB Ports	Front: 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 10Gbps Type-C Rear: 4 × USB 5Gbps Type-A, 3 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C
LAN	Realtek 8125D 2.5G LAN
Wireless	Wi-Fi 6E, pre-installed in M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4/5/6 GHz (160 MHz), up to 2.4Gbps 802.11 a/b/g/n/ac/ax, Bluetooth 5.3, FIPS, FISMA
Internal I/O	1 × ATX_PWR, 2 × CPU_PWR 1 × CPU Fan, 1 × Combo Fan (Pump/System), 3 × System Fan 1 × EZ Conn-header (JAF_1), 2 × Front Panel (JFP), 1 × Chassis Intrusion (JCI) 1 × Front Audio (JAUD), 1 × Tuning Controller (JDASH) 3 × Addressable V2 RGB LED (JARGB_V2), 1 × RGB LED (JRGB) 1 × TPM pin header (TPM 2.0) 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 10Gbps Type-C
Special Features	4 × EZ Debug LED 1 × EZ Memory Detection LED
Warranty	3 Years
