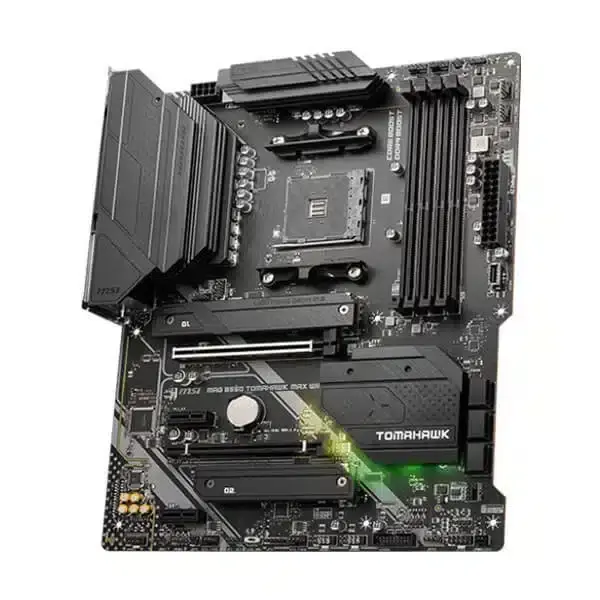

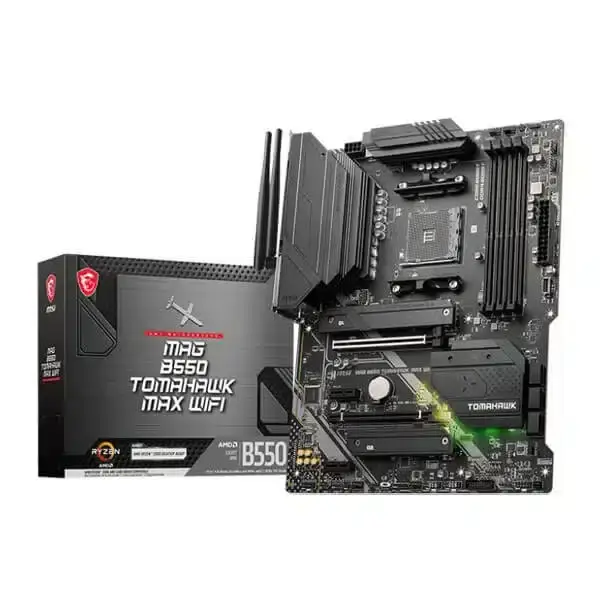

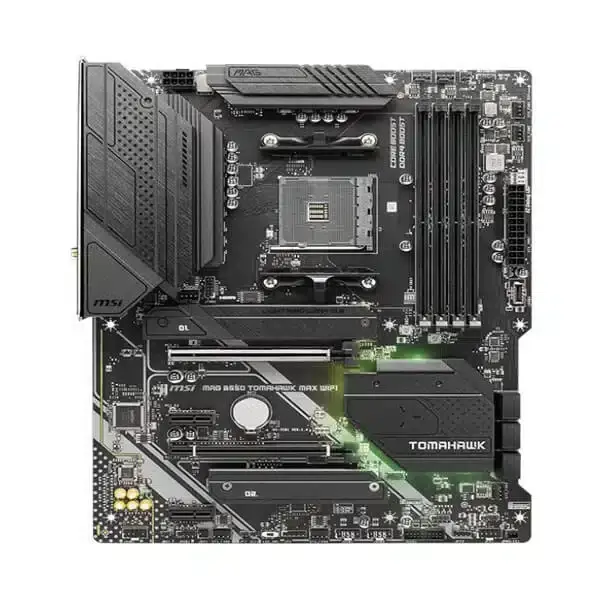

Name: MSI MAG B550 Tomahawk Max WIFI
Brand: MSI
SKU: MC-2443-K9CS
Price: 17990 INR
Availability: OutOfStock

Description
Reviews (0)

Specification	Details
Model	MAG B550 TOMAHAWK MAX WIFI
Processor	Supports AMD Ryzen™ 5000 Series / 5000 G-Series / 4000G-Series / 3000 Series processors
Chipset	AMD B550 Chipset
Memory	4 × DDR4 DIMM slots, up to 128GB Supports DDR4 1866 / 2133 / 2400 / 2667 / 2800 / 2933 / 3000 / 3066 / 3200 MHz (JEDEC) Supports DDR4 2667 – 5100+ MHz (A-XMP OC Mode) 1DPC 1R max speed 5100 MHz 1DPC 2R max speed 3866 MHz 2DPC 1R max speed 4000 MHz 2DPC 2R max speed 3600 MHz Dual channel memory architecture Supports non-ECC UDIMM memory Supports ECC UDIMM (un-buffered)
Expansion Slots	1 × PCIe 4.0 / 3.0 x16 slot (PCI_E1) 1 × PCIe 3.0 x16 slot (PCI_E3, x4 mode) 2 × PCIe 3.0 x1 slots
Multi-GPU	Supports AMD CrossFire™ Technology
Onboard Graphics	1 × HDMI 2.1 (4096×2160 @60Hz) 1 × DisplayPort (4096×2160 @60Hz) Supports HDCP 1.4 & 2.3 Maximum shared memory up to 16GB
Storage	AMD B550 Chipset 6 × SATA 6Gb/s ports 2 × M.2 slots (Key-M) M2_1 (CPU): PCIe 4.0 / 3.0 x4 Supports SATA 6Gb/s Supports 2242 / 2260 / 2280 / 22110 SSDs M2_2 (Chipset): PCIe 3.0 x4 Supports 2242 / 2260 / 2280 SSDs
RAID	RAID 0 / 1 / 10 for SATA storage devices RAID 0 / 1 for M.2 NVMe storage devices
USB	AMD B550 Chipset: 3 × USB 3.2 Gen1 5Gbps ports (1 Type-C internal + 2 via header) 6 × USB 2.0 ports (2 rear + 4 internal) AMD Processor: 2 × USB 3.2 Gen2 10Gbps (1 Type-C + 1 Type-A rear) 2 × USB 3.2 Gen1 5Gbps Type-A (rear)
LAN	Realtek® RTL8125B 2.5Gbps LAN controller
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports Optical S/PDIF Output
Wireless & Bluetooth	AMD Wi-Fi 6E module (M.2 Key-E) Supports MU-MIMO TX/RX 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a / b / g / n / ac / ax Bluetooth® 5.2
Internal Connectors	24-pin ATX power connector 8-pin CPU power connector 6 × SATA 6Gb/s ports 2 × M.2 slots USB 3.2 Gen1 Type-C header USB 3.2 Gen1 header (2 ports) 2 × USB 2.0 headers (4 ports) CPU fan header Water-pump fan header 6 × system fan headers Front panel audio header System panel connectors Chassis intrusion connector 2 × RGB LED connectors 2 × Addressable RAINBOW LED connectors TPM module connector Clear CMOS jumper

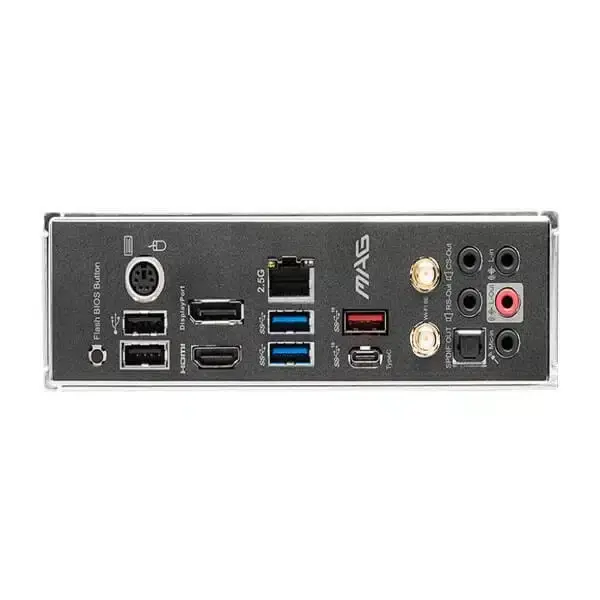

Back Panel Ports	PS/2 Keyboard / Mouse DisplayPort 1.4 HDMI 2.1 2.5G LAN USB 3.2 Gen2 Type-A USB 3.2 Gen2 Type-C USB 3.2 Gen1 Type-A USB 2.0 ports Wi-Fi / Bluetooth antenna connectors Optical S/PDIF OUT Audio jacks Flash BIOS button
Dimensions	ATX Form Factor 12 in × 9.6 in (30.5 cm × 24.4 cm)
Mounting	9 mounting holes
Operating System	Windows® 11 64-bit Windows® 10 64-bit
Warranty	3 Years
Note	Features, price and specifications are subject to change without notice.
