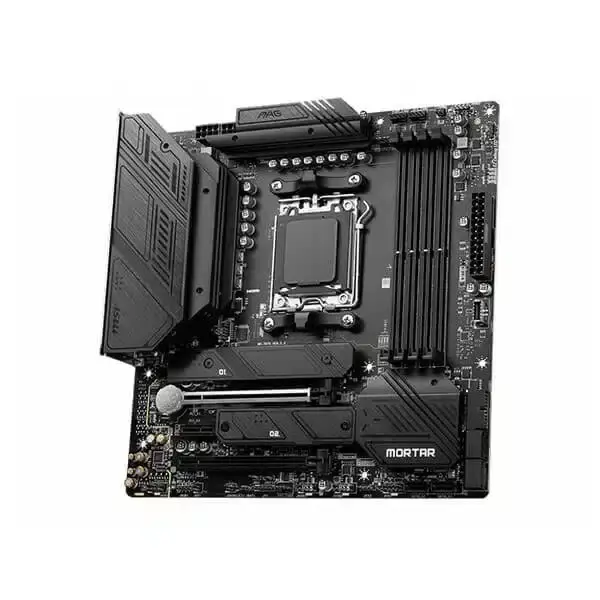

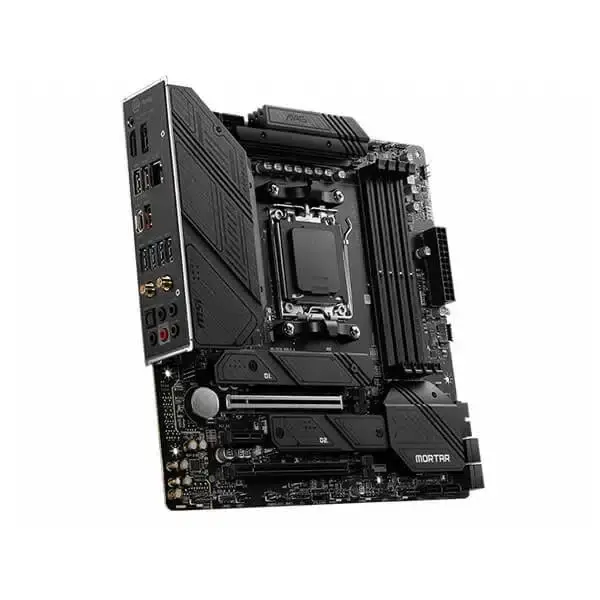

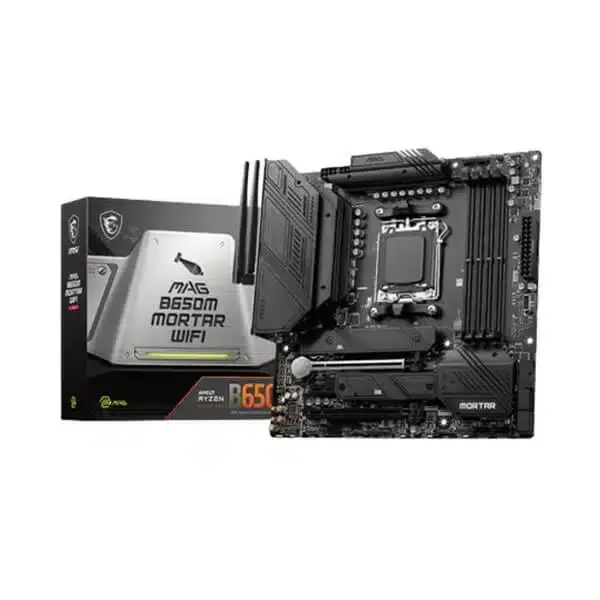

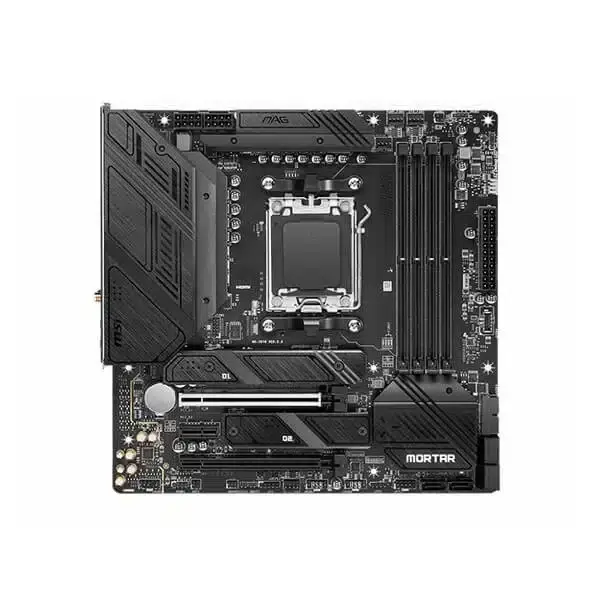

MSI MAG B650M Mortar WIFI

Name: MSI MAG B650M Mortar WIFI
Brand: MSI
SKU: MC-2443-T0UN
Price: 21790 INR
Availability: OutOfStock

Brand: MSI

₹21,790.00 ₹29,000.00

(Including GST 18%)

Chat on WhatsApp

SKU:MC-2443-T0UN

Categories:Motherboard

Description
Reviews (0)

Specification	Details
Chipset	AMD B650
CPU Support	Supports AMD Ryzen 7000 Series Desktop Processors
Socket	AM5
Memory	4 × DDR5 Max Capacity: 128GB Supported Speeds: 6400+(OC), 6200(OC), 6000(OC), 5800(OC), 5600(OC), 5400(OC), 5200(OC), 5000(OC), 4800(JEDEC) MHz
Onboard Graphics	1 × HDMI 1 × DisplayPort HDMI 2.1 with HDR (Max 4K 60Hz) DP 1.4 (Max 8K 60Hz)
Expansion Slots	2 × PCI-E x16 (x16/x4) 1 × PCI-E x1 - PCI_E1: PCIe 4.0 up to x16 (CPU) - PCI_E2: PCIe 3.0 up to x1 (Chipset) - PCI_E3: PCIe 4.0 up to x4 (Chipset)
Storage	2 × M.2: - M.2_1 (CPU): PCIe 4.0 x4, 2280/2260 - M.2_2 (CPU): PCIe 4.0 x4, 2280/2260 6 × SATA 6G ports
RAID	SATA: RAID 0, RAID 1, RAID 10* M.2 NVMe: RAID 0, RAID 1* *Note: SATA_A1_A2 do not support RAID
USB	Front: - 4 × USB 2.0 - 2 × USB 3.2 Gen1 Type-A - 1 × USB 3.2 Gen2 Type-C Rear: - 4 × USB 3.2 Gen1 Type-A - 3 × USB 3.2 Gen2 Type-A - 1 × USB 3.2 Gen2x2 Type-C
LAN	Realtek RTL8125B 2.5Gbps
Wireless / Bluetooth	AMD Wi-Fi 6E (M.2 Key-E) MU-MIMO TX/RX Bandwidth: 20/40/80/160 MHz (2.4/5/6 GHz) 802.11 a/b/g/n/ac/ax Bluetooth 5.2
Audio	Realtek ALC4080 Codec 7.1-Channel High Performance Audio S/PDIF output 32-Bit / 384 kHz front panel playback
Internal I/O	1 × ATX_PWR 2 × CPU_PWR 1 × CPU Fan 1 × Pump Fan 3 × System Fan 2 × Front Panel (JFP) 1 × Chassis Intrusion (JCI) 1 × Front Audio (JAUD) 1 × Tuning Controller (JDASH) 2 × Addressable V2 RGB (JARGB_V2) 2 × RGB LED (JRGB) 1 × TPM header 4 × USB 2.0 2 × USB 3.2 Gen1 Type-A 1 × USB 3.2 Gen2 Type-C
LED Feature	4 × EZ Debug LED
Operating System	Windows 11 64-bit, Windows 10 64-bit
UPCB Dimension	M-ATX
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.
