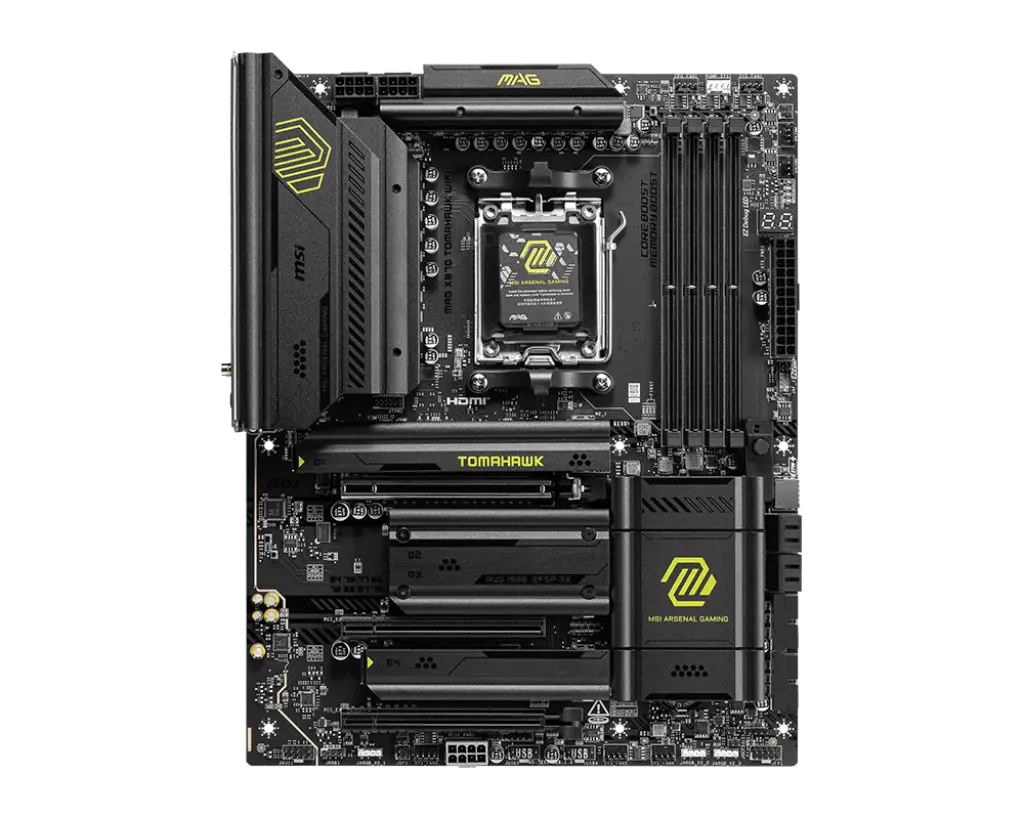

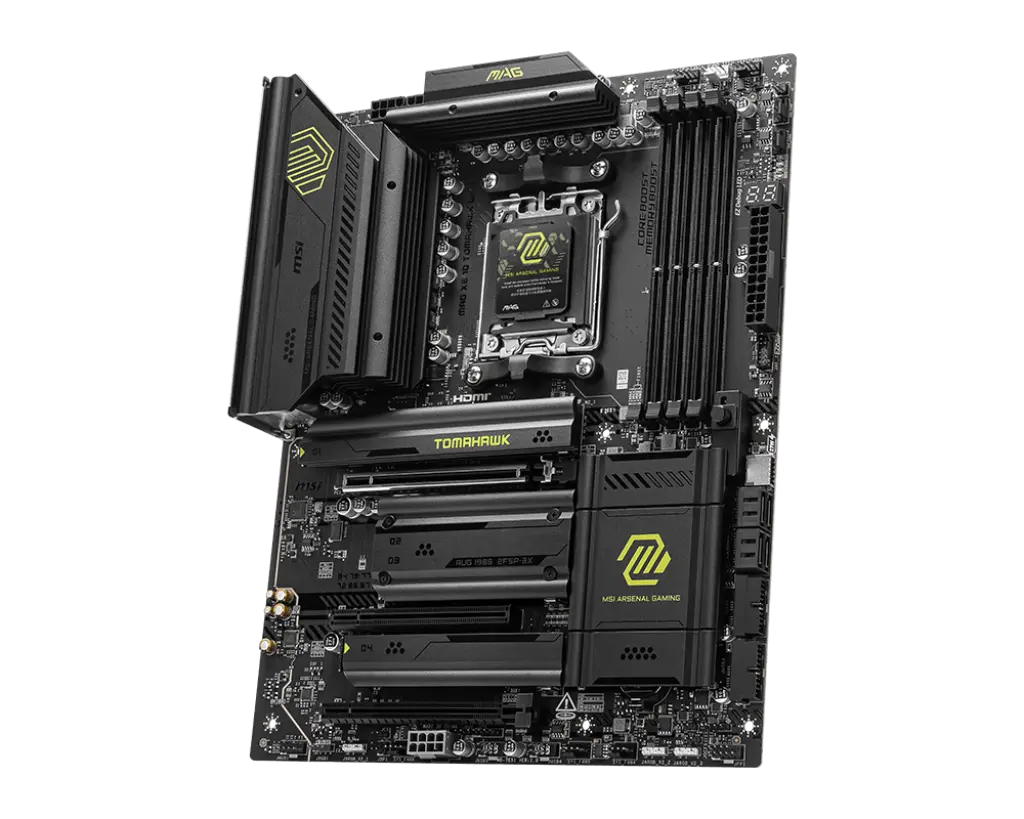

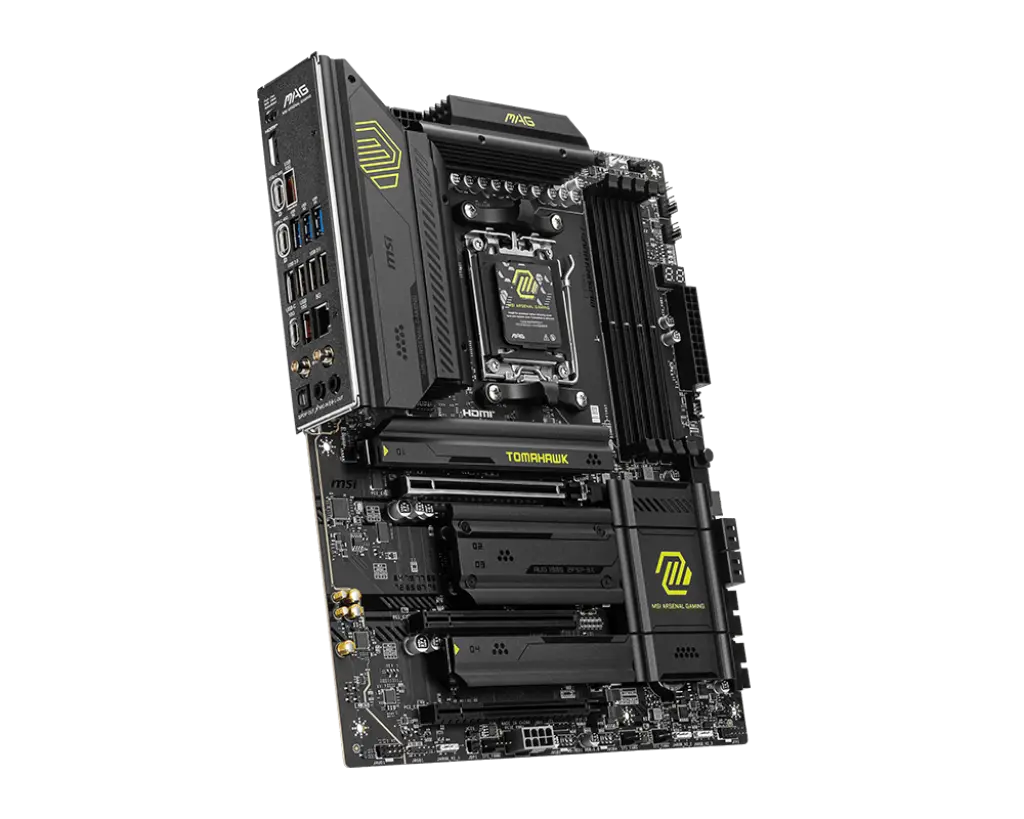

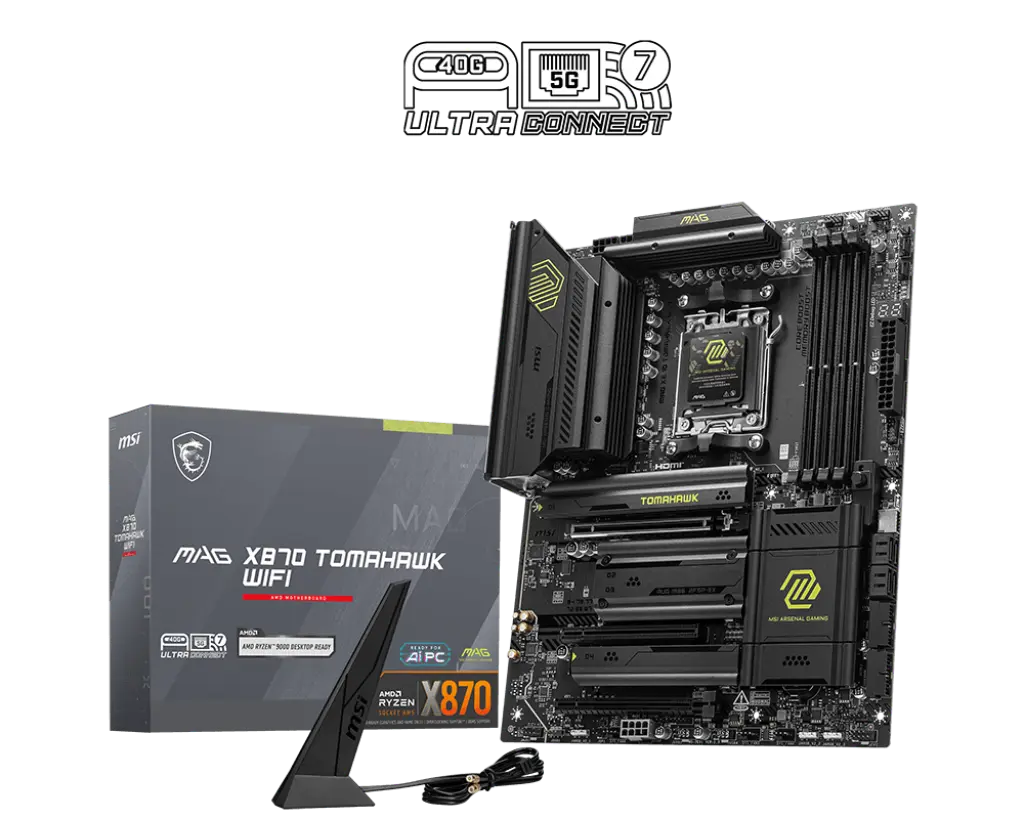

MSI MAG X870 Tomahawk WIFI AMD Motherboard

MSI MAG X870 Tomahawk WIFI AMD Motherboard

Name: MSI MAG X870 Tomahawk WIFI AMD Motherboard
Brand: MSI
SKU: MC-2443-PENW
Price: 34790 INR
Availability: OutOfStock

Brand: MSI

₹34,790.00 ₹40,000.00

(Including GST 18%)

Chat on WhatsApp

SKU:MC-2443-PENW

Categories:Motherboard

Description
Reviews (0)

Category	Specification
Model Name	MAG X870 TOMAHAWK WIFI
CPU Support	AMD Socket AM5 — Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Chipset	AMD X870
Memory	4 × DDR5 UDIMM, max 256 GB Supported speeds: DDR5 8400+(OC) → 4800(JEDEC) Dual-channel, non-ECC unbuffered DIMMs, AMD EXPO™/JEDEC/overclocking support CUDIMM support (clock driver bypass mode, CPU-dependent boot) 1DPC/2DPC max speeds vary by rank and CPU series
Onboard Graphics	1 × HDMI (HDMI 2.1 FRL, up to 8K 60Hz) 2 × USB4 Type-C (DisplayPort 1.4 HBR3, max 4K 60Hz) * Only available with CPUs featuring integrated graphics
PCIe Slots	3 × PCI-E x16 slots PCI_E1: CPU, PCIe 5.0 x16 (Ryzen 9000/7000), PCIe 4.0 x8/4 for others PCI_E2: Chipset, PCIe 3.0 x1 PCI_E3: Chipset, PCIe 4.0 x4 (x2 if M2_3 populated; can switch to x4 disabling M2_3)
Audio	Realtek ALC4080 Codec, 7.1-Channel USB High Performance Audio Supports 32-bit/384kHz playback, front panel output, S/PDIF
Storage	4 × M.2 slots: - M2_1 CPU: PCIe 5.0 x4, 22110/2280 - M2_2 CPU: PCIe 5.0 x4 (unavailable with Ryzen 8500/8300; shares bandwidth with USB 40Gbps Type-C) - M2_3 Chipset: PCIe 4.0 x2 (can switch to x4 disabling M2_3) - M2_4 Chipset: PCIe 4.0 x4 RAID: NVMe RAID 0/1/10; SATA RAID 0/1/10
USB	Rear: 4 × USB 2.0, 3 × USB 5Gbps Type-A, 2 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C, 2 × USB 40Gbps Type-C, 1 × USB 20Gbps Type-C (Front) Front: 4 × USB 2.0, 4 × USB 5Gbps Type-A
LAN	Realtek 8126-CG 5G LAN
Wireless & Bluetooth	Wi-Fi 7 pre-installed in M.2 Key-E slot MU-MIMO TX/RX, 2.4/5/6 GHz up to 5.8 Gbps Bluetooth 5.4, 802.11 a/b/g/n/ac/ax/be 6GHz band support depends on country; requires Windows 11 24H2
LED Features	4 × EZ Debug LEDs, 1 × EZ Digit Debug LED
Internal I/O	1 × ATX_PWR, 2 × CPU_PWR, 1 × PCIE_PWR 8pin CPU/Combo Fan, 6 × System Fans Front panel headers, audio, USB, TPM, RGB/ARGB Gen2 × 3, JRGB, EZ Conn-header
Back Panel Ports	Clear CMOS Button, USB (various speeds & types), HDMI, Flash BIOS Button, 5G LAN, Wi-Fi/BT, Audio connectors
Form Factor	ATX (304.8 × 243.84 mm)
OS Support	Windows 11 64-bit
Warranty	3 Years
