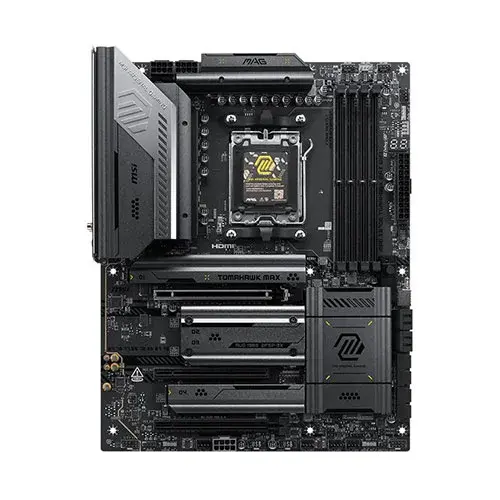

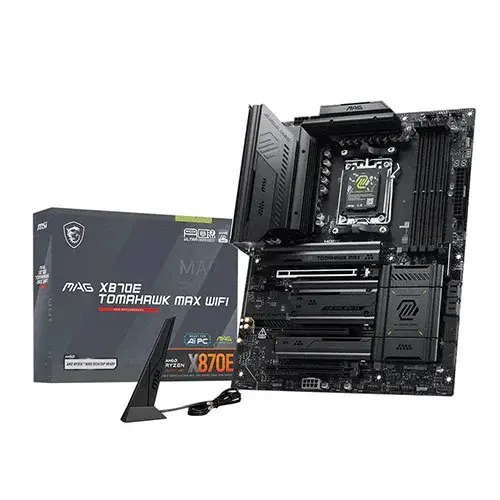

Name: MSI MAG X870E TOMAHAWK MAX WIFI Motherboard
Brand: MSI
SKU: MC-2443-KKUT
Price: 36190 INR
Availability: OutOfStock

Description
Reviews (0)

Category	Specification
Model	MSI MAG X870E TOMAHAWK MAX WIFI Motherboard
Platform	AMD
Socket	AM5
CPU Support	Supports AMD Ryzen™ desktop processors: - Ryzen™ 9000 Series - Ryzen™ 8000 Series - Ryzen™ 7000 Series
Chipset	AMD X870E
Memory	Supports DDR5 memory Maximum capacity: 256 GB Dual Channel architecture Memory speed up to DDR5 8400+ MT/s (OC)
Memory Speed Support	DDR5 8400 – 5600 MT/s (OC) DDR5 5600 – 4800 MT/s (JEDEC)
Ryzen 9000 Memory OC	1DPC 1R: Up to 8400+ MT/s 1DPC 2R: Up to 6400+ MT/s 2DPC 1R: Up to 6400+ MT/s 2DPC 2R: Up to 6400+ MT/s
Memory Features	Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM (Clock Driver bypass mode only)
Graphics Output	1 × HDMI port Supports HDMI 2.1 FRL with maximum resolution of 8K @ 60Hz 2 × USB Type-C DisplayPort outputs USB4 port supporting DisplayPort 1.4 (HBR3) over USB Type-C with maximum resolution of 4K @ 60Hz
Expansion Slots	3 × PCIe x16 slots
PCIe Slot Details	PCI_E1: PCIe 5.0 x16 (from CPU) PCI_E2: PCIe 3.0 x1 (from chipset) PCI_E3: PCIe 4.0 x4 (from chipset)
PCI_E1 Compatibility	Supports PCIe 5.0 x16 (Ryzen™ 9000 / 7000 Series processors) Supports PCIe 4.0 x8 (Ryzen™ 8700 / 8600 / 8400 Series processors) Supports PCIe 4.0 x4 (Ryzen™ 8500 / 8300 Series processors)
Wireless Networking	Wi-Fi 7 Bluetooth 5.4
Back Panel I/O Ports	Clear CMOS Button Flash BIOS Button HDMI port 5G LAN port Wi-Fi / Bluetooth antenna connectors USB 40Gbps Type-C USB 10Gbps Type-C USB 10Gbps Type-A USB 5Gbps Type-A USB 2.0 ports Optical S/PDIF-OUT Audio connectors
Internal I/O Connectors	1 × ATX Power Connector (ATX_PWR) 2 × CPU Power Connectors (CPU_PWR) 1 × PCIe Power Connector (8-pin PCIE_PWR) 1 × CPU Fan header 1 × Combo Fan / Pump System Fan header 6 × System Fan headers 1 × EZ Conn header (JAF_2) 2 × Front Panel headers (JFP) 1 × Chassis Intrusion header (JCI) 1 × Front Audio header (JAUD) 3 × Addressable V2 RGB LED connectors (JARGB_V2) 1 × RGB LED connector (JRGB) 1 × TPM header (TPM 2.0 supported) 2 × Direct OC Jumpers (JBCLK) 4 × USB 2.0 ports (internal) 4 × USB 5Gbps Type-A ports (internal) 1 × USB 20Gbps Type-C port (internal)
Form Factor	ATX
Warranty	3 Years
