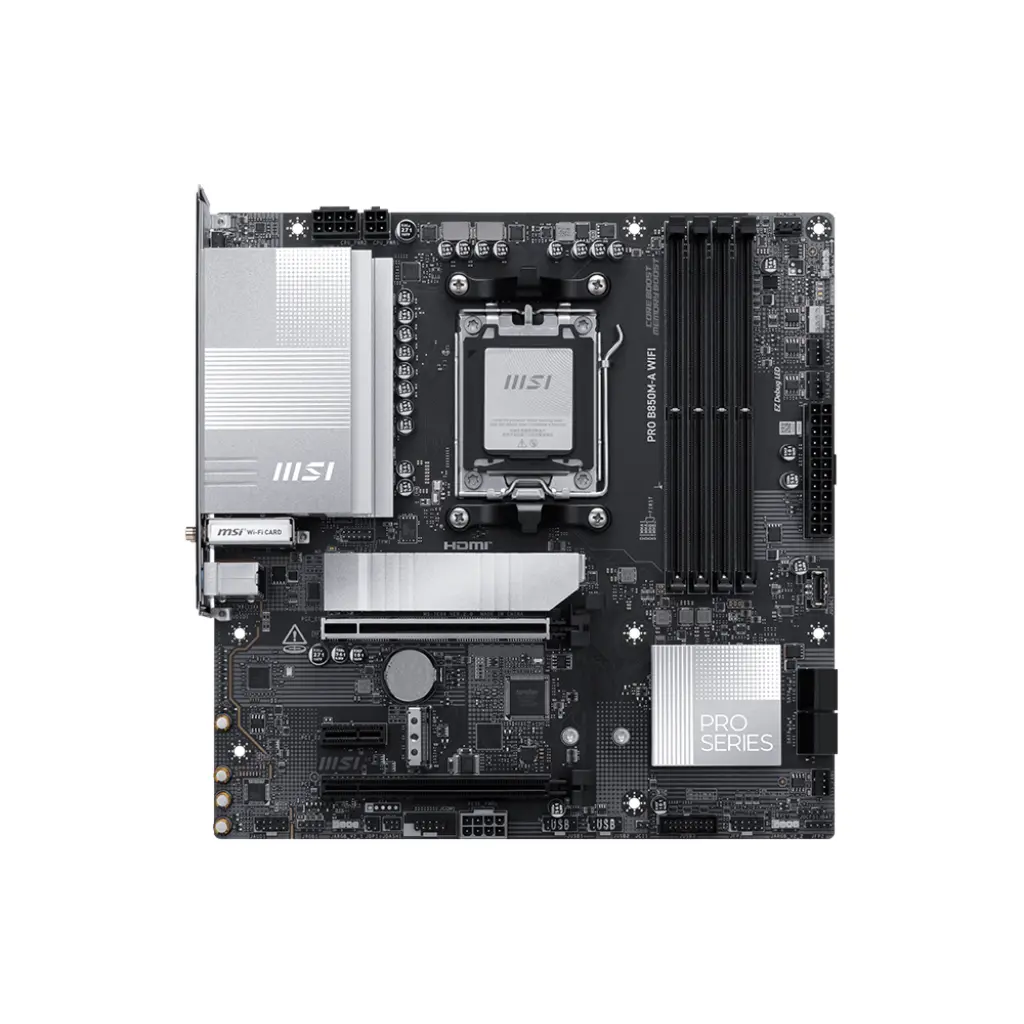

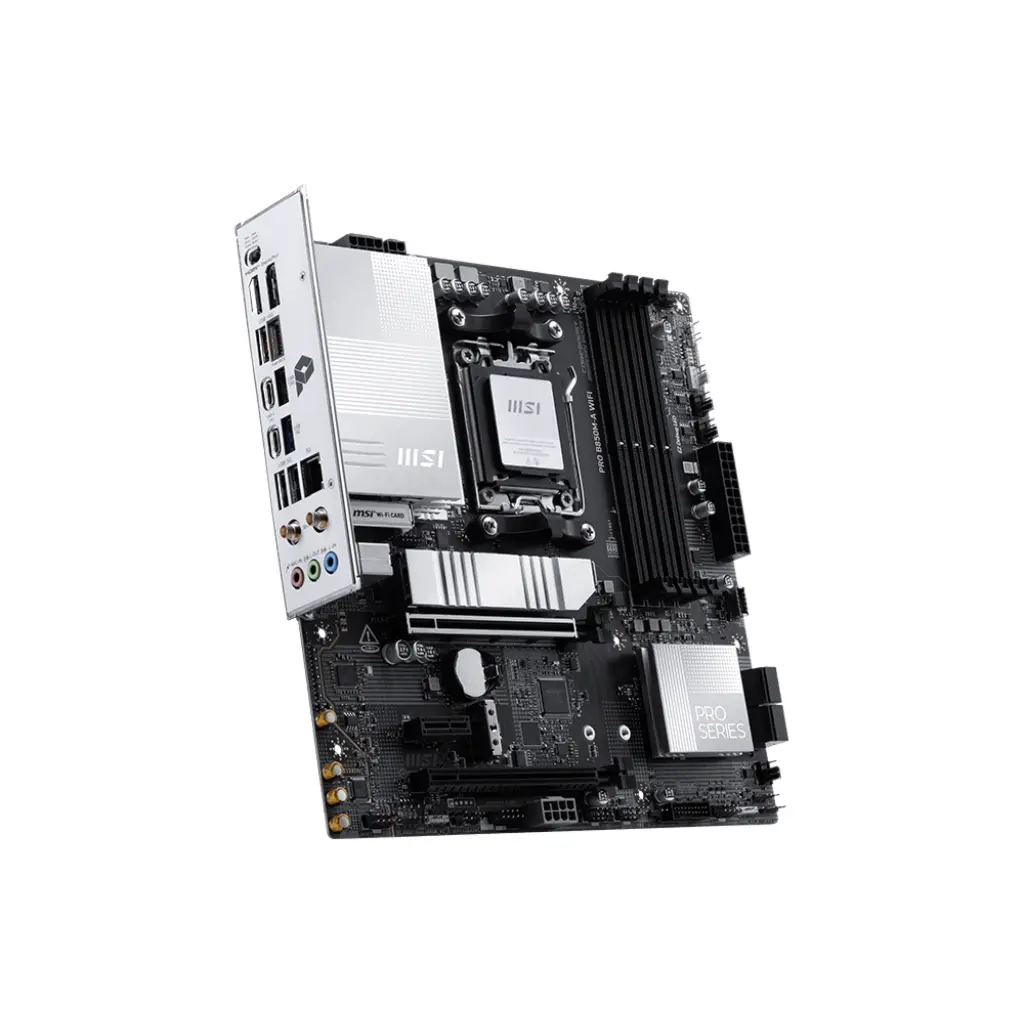

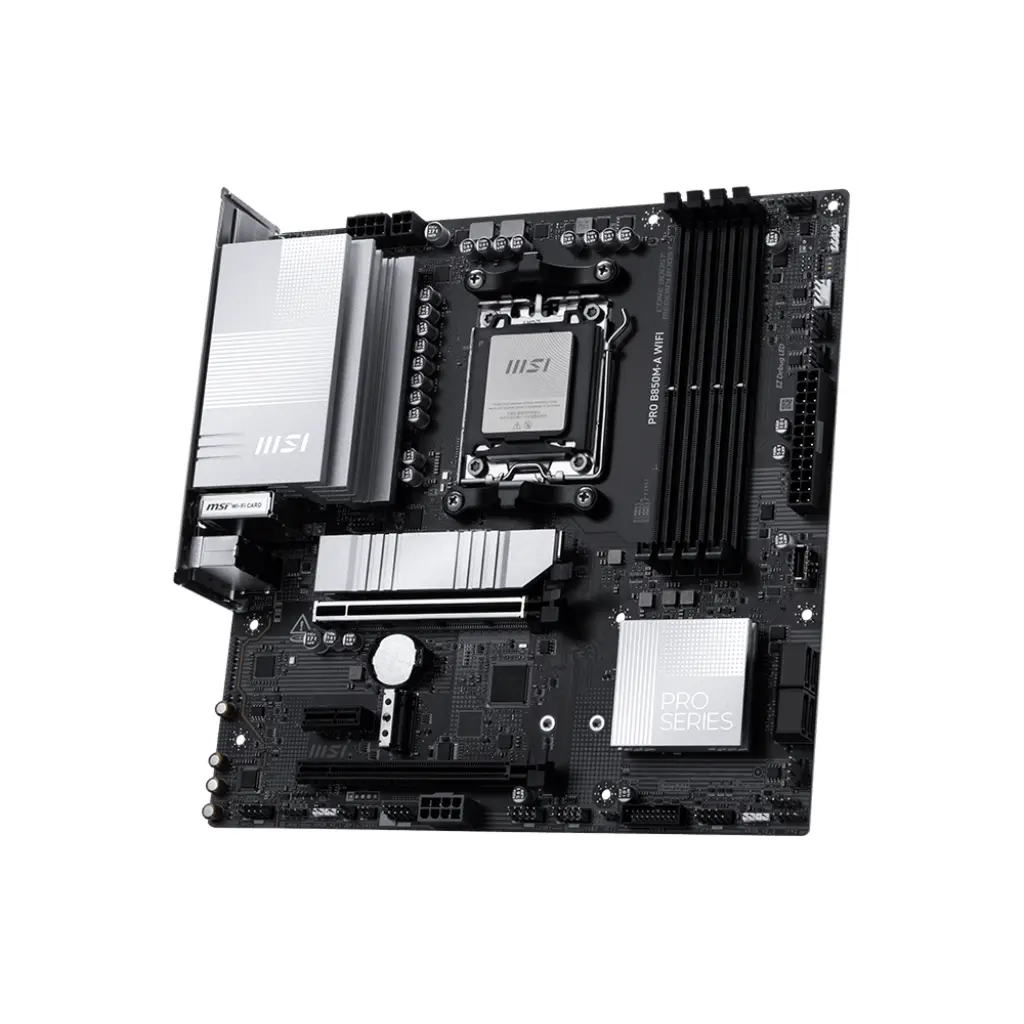

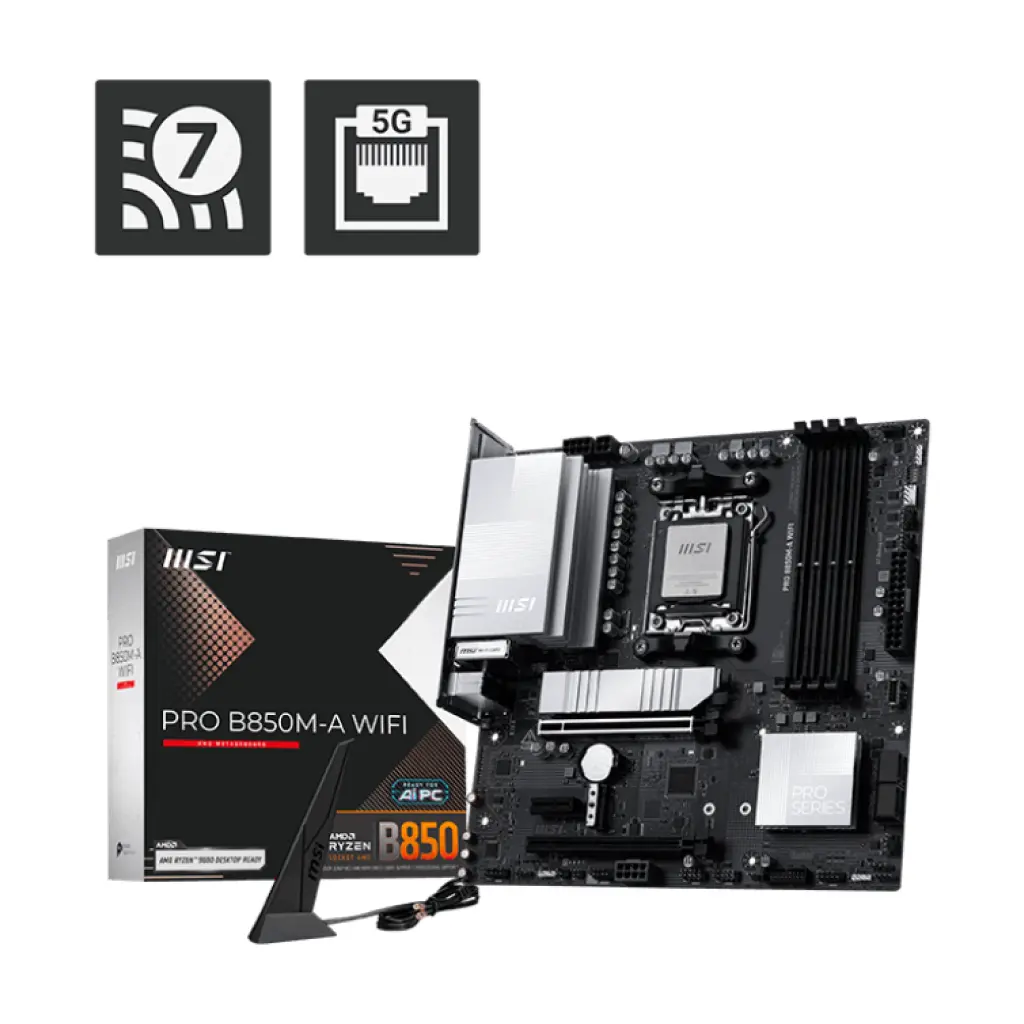

Name: MSI PRO B850M-A WIFI
Brand: MSI
SKU: MC-2443-22UX
Price: 19390 INR
Availability: OutOfStock

Description
Reviews (0)

Specification	Details
Chipset	AMD B850
CPU	Socket AM5 Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory	4 × DDR5 UDIMM slots, up to 256GB Memory Support: DDR5 8200 – 5600 MT/s (OC) / 5600 – 4800 MT/s (JEDEC) Ryzen™ 9000 Series Max OC Speeds: • 1DPC 1R up to 8200+ MT/s • 1DPC 2R up to 6400+ MT/s • 2DPC 1R up to 6400+ MT/s • 2DPC 2R up to 6000+ MT/s Supports AMD POR Speed & JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Dual-channel memory architecture Supports Non-ECC, Unbuffered memory Supports CUDIMM (Clock Driver bypass mode)
Onboard Graphics	1 × HDMI™ (HDMI 2.1, up to 4K 60Hz) 1 × DisplayPort (DisplayPort 1.4, up to 4K 60Hz) *Available only with CPUs featuring integrated graphics
Expansion Slots	2 × PCIe x16 slots 1 × PCIe x1 slot Slot Configuration: PCI_E1 – PCIe 5.0 x16 (CPU) PCI_E2 – PCIe 3.0 x1 (Chipset) PCI_E3 – PCIe 4.0 x4 (Chipset) PCI_E1 Support: • PCIe 5.0 x16 – Ryzen™ 9000 / 7000 Series • PCIe 4.0 x8 – Ryzen™ 8700 / 8600 / 8400 Series • PCIe 4.0 x4 – Ryzen™ 8500 / 8300 Series
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	2 × M.2 slots 4 × SATA 6Gb/s ports M2_1 (CPU): Supports up to PCIe 5.0 x4 Supports 2280 / 2260 devices PCIe 5.0 x4 (Ryzen™ 9000 / 7000) PCIe 4.0 x4 (Ryzen™ 8000) M2_2 (CPU): Supports up to PCIe 4.0 x4 Supports 2280 / 2260 devices PCIe 4.0 x2 for Ryzen™ 8500 / 8300 processors
RAID	RAID 0 / 1 / 10 for SATA storage devices RAID 0 / 1 for M.2 NVMe storage devices
USB	Rear: • 3 × USB 10Gbps Type-A • 2 × USB 10Gbps Type-C • 3 × USB 5Gbps Type-A Front/Internal: • 1 × USB 10Gbps Type-C • 2 × USB 5Gbps Type-A • 4 × USB 2.0
LAN	Realtek® 8126VB 5G LAN
Wireless & Bluetooth	Wi-Fi 7 (M.2 Key-E module) Supports MU-MIMO TX/RX 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.9Gbps Supports 802.11 a / b / g / n / ac / ax / be Bluetooth® 5.4 Supports MLO and 4KQAM
Internal I/O	24-pin ATX power connector 2 × CPU power connectors 1 × PCIe 8-pin power connector CPU fan header Pump / System fan header 3 × System fan headers 2 × Front panel connectors Chassis intrusion header Front audio header COM port header Tuning controller connector 3 × Addressable RGB headers 1 × RGB LED header TPM 2.0 header USB headers
LED Features	4 × EZ Debug LEDs 1 × EZ Memory Detection LED
Back Panel Ports	Clear CMOS Button Flash BIOS Button DisplayPort HDMI™ USB 10Gbps Type-A ports USB 10Gbps Type-C port USB 5Gbps Type-A ports 5G LAN port Wi-Fi / Bluetooth antenna connectors Audio jacks
PCB Info	mATX Form Factor 243.84 mm × 243.84 mm
