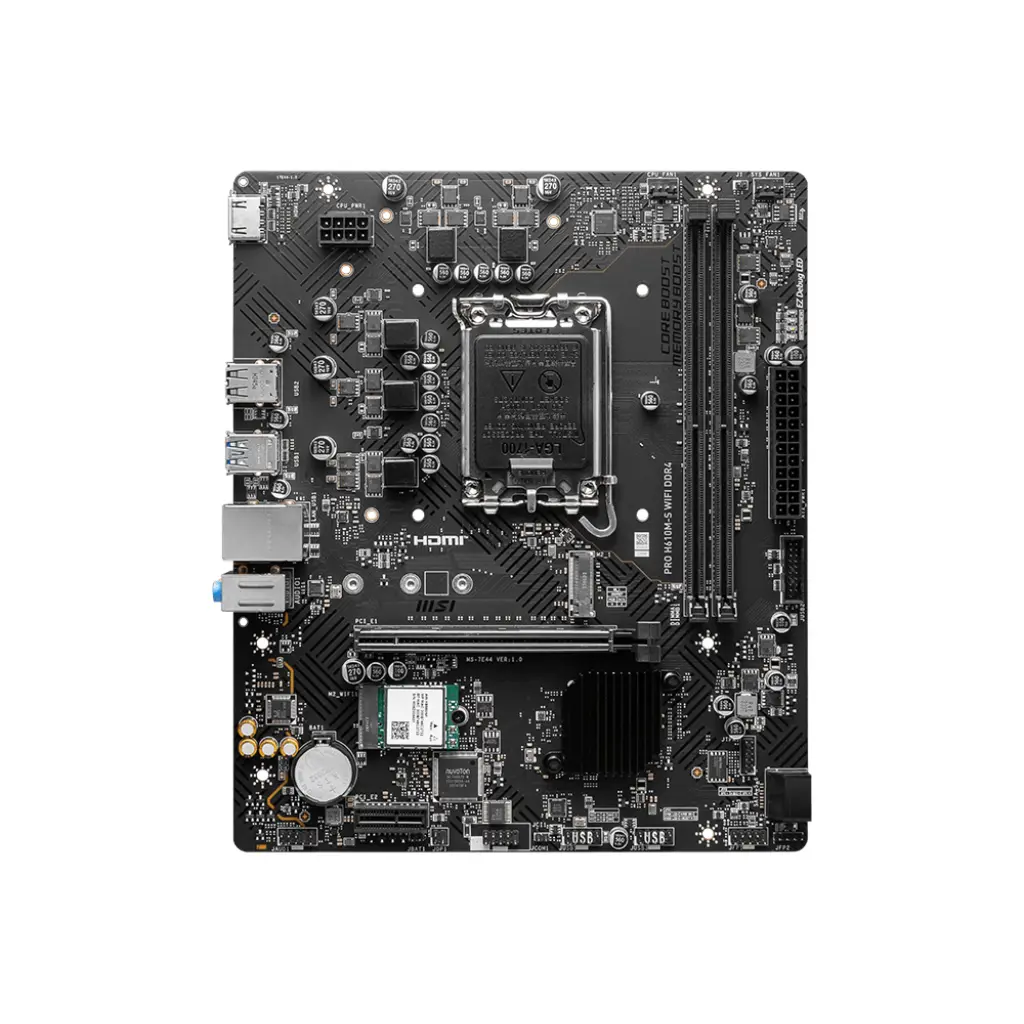

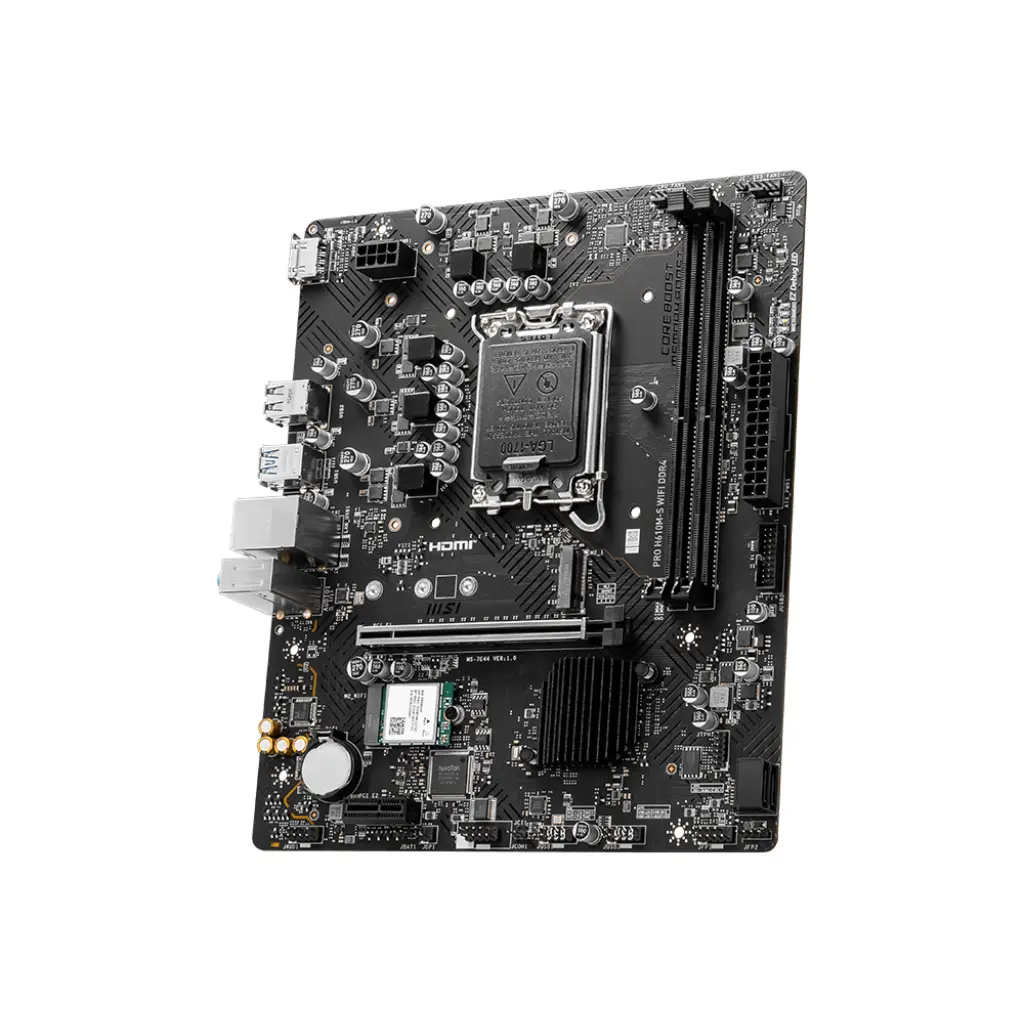

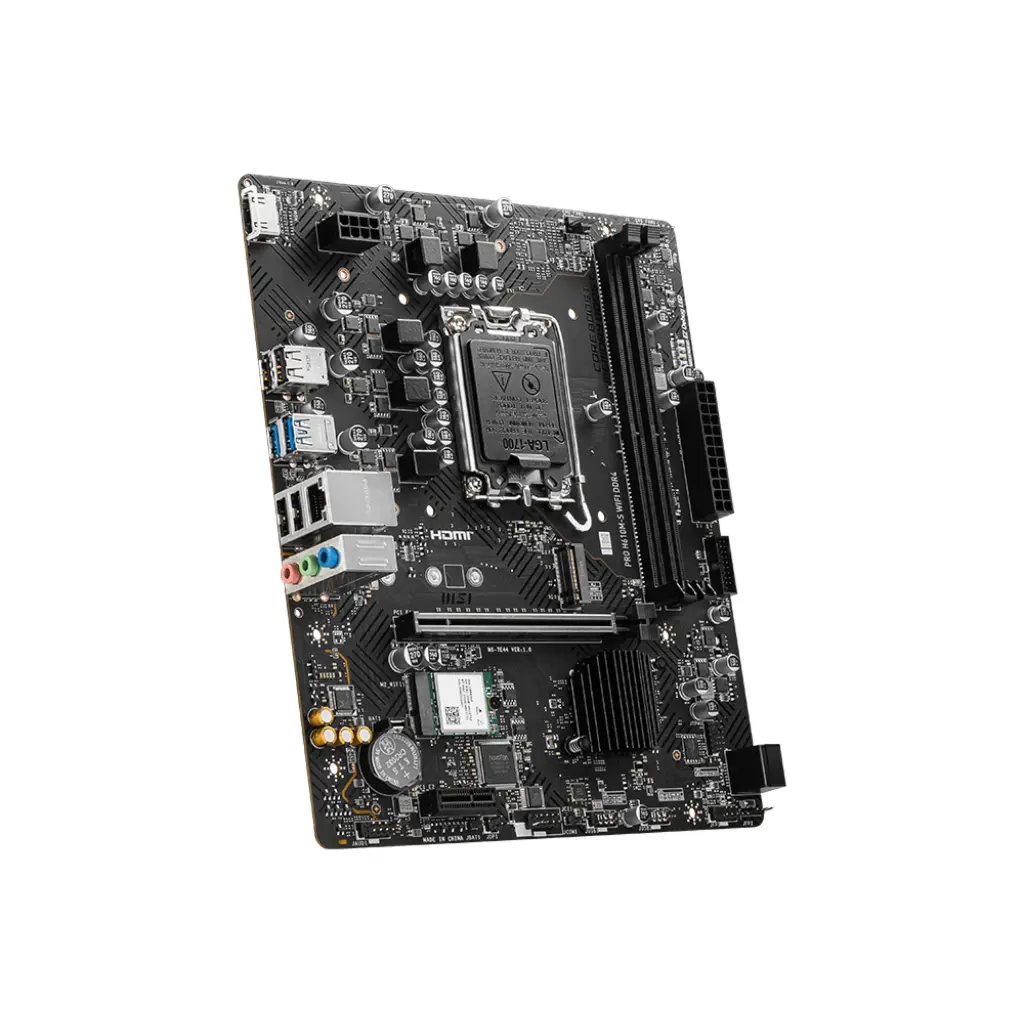

MSI PRO H610M-S WIFI DDR4MSI PRO H610M-S WIFI DDR4MSI PRO H610M-S WIFI DDR4
MSI PRO H610M-S WIFI DDR4
MSI PRO H610M-S WIFI DDR4
MSI PRO H610M-S WIFI DDR4

MSI PRO H610M-S WIFI DDR4

Brand: MSI

₹7,990.00 ₹12,000.00

(Including GST 18%)

MOTHERBOARD MEMORY TYPE:

SOCKET TYPE:

FORM FACTOR:

CHIPSET:

(Out of stock)
Quantity
Chat on WhatsApp

SKU:MC-2443-KGRS

Categories:Motherboard

SpecificationDetails
Model NumberPRO H610M-S WIFI DDR4
ChipsetINTEL H610
CPUSupport Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
AudioRealtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage1x M.2
M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
2x SATA 6G
LANRealtek® RTL8111H Gigabit LAN
Onboard Graphics1x HDMI™
Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz
Slot1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
2x USB 5Gbps Type A (Front)
Wireless LAN & BluetoothWi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Internal IO1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
LED Feature4x EZ Debug LED
Back Panel PortsHDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0
LAN port
Audio Connectors
USB 2.0
Operating SystemSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB InfomATX
200mm x 236.16mm
Warranty3 Years
Note*** Features, Price, Specifications are subject to change without notice.
